Band width: 1/2” (12.7mm)
Band thick: 0.024” (0.6mm)
Screw size: 5/16” (7.9mm)
Material: W4 201, W4 304
Free running torque: 6 in-lbs (0.7 Nm)
Suggested installation torque: 35 in-lbs (4 Nm)
Description：

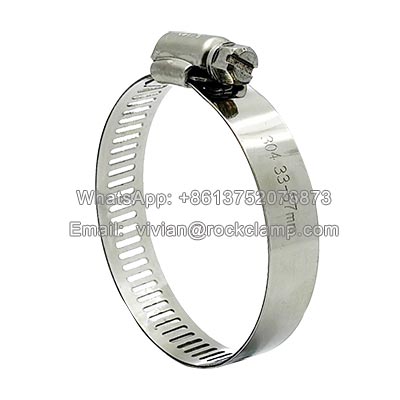

The American hose clamp of stainless steel worm gear clamps are widely used in pipe and hose connections. Its band perforated. The perforated hose clamp adopts a worm gear transmission mechanism to evenly tighten the clamp by tightening the screws to ensure sealing and stability.
Material:
W4 - All parts SS201/SS304
Stainless steel worm gear clamps (perforated hose clamp) are made of stainless steel, which exhibits excellent corrosion resistance, heat resistance, and low-temperature strength, along with outstanding mechanical properties. This type Amercian hose clamp can be easily processed at room temperature through deep drawing, bending, and other operations without hardening after heat treatment. Notably, the stainless steel 304 material complies with food safety standards, containing over 8% nickel and no lead, ensuring environmental friendliness and safety.
Components:
- Perforated Band: This perforated hose clamp band is made of stainless steel with high strength and corrosion resistance.
- American hose clamp Worm Gear & Screw: the worm (adjusting screw) meshes with the worm wheel, and rotating the screw can evenly tighten or loosen the band. Generally, cross-slot or slotted screw heads are used for easy operation with a screwdriver.
- Housing: fix the worm gear structure to ensure uniform force and prevent the band from twisting or slipping.
Features:
Stainless steel worm gear clamps (american hose clamp) feature the perforated strip band design, which offers significant advantages in multiple aspects.
- Stepless adjustment & wide application range: the worm design allows continuous adjustment to adapt to different pipe diameters (such as Φ10mm~Φ200mm or larger).

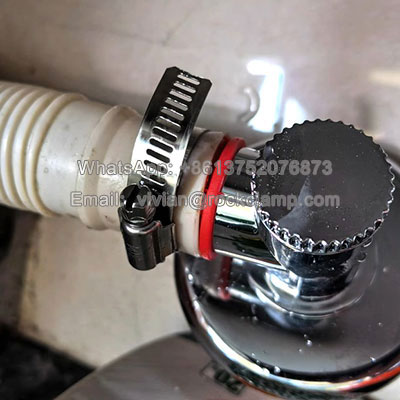

- Uniform force & high sealing: The pressure is evenly distributed when tightened to prevent pipe deformation or leakage, suitable for liquid and gas pipelines.
- Anti-loosening & anti-vibration: compared with spring clamps or wire hose clamps, American type hose clamps are not easy to loosen after locking, suitable for vibration environments such as automobiles, ships, and machinery.
- Easy installation & reusable: only a screwdriver is required to tighten or disassemble, easy maintenance, and can be used multiple times.
Package: small bag/box + outer carton + pallet
