Description：

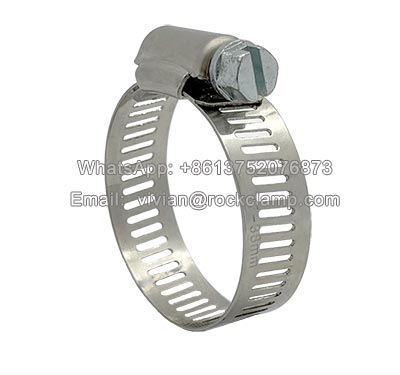

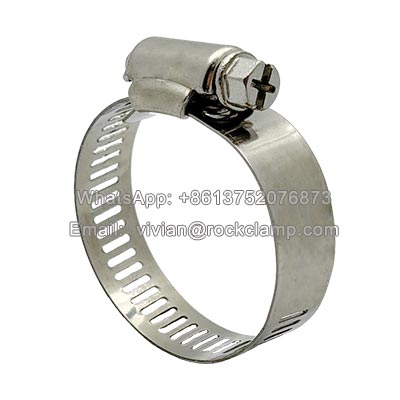

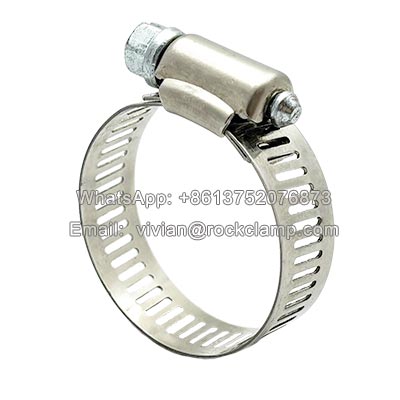

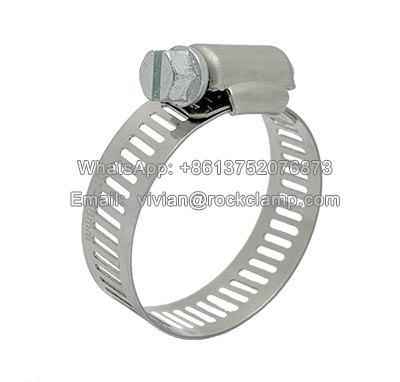

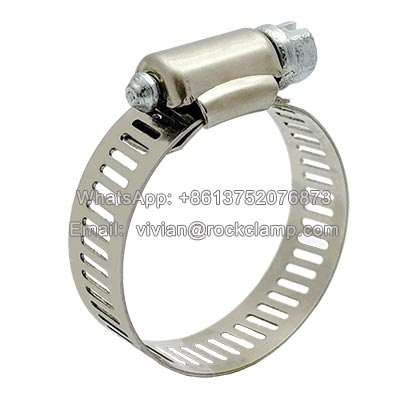

The perforate band American type worm drive hose clamp W2 is also known as screw clamp for hose. It is a mechanical device used to secure a hose onto a fitting, such as a pipe or nozzle, ensuring a tight and leak-proof connection. The material W2 typically consists of a stainless steel band with perforations and a worm gear mechanism that tightens the band when the galvanized screw is turned.
Material & Features:

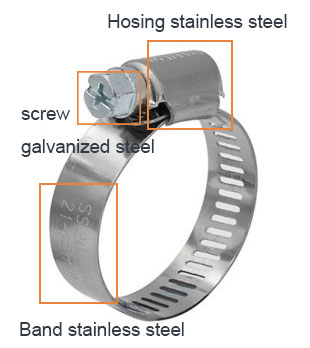

W2 - Hosing and band stainless steel 201 or 301, screw carbon steel with zinc/nickel plated
The W2 American type hose clamp (screw clamp clamp for hose) features the zinc-plated screws, which forms a protective layer that shields the screw from moisture, oxygen, and other environmental factors, significantly reducing rust and corrosion. Compared to stainless steel or other anti-corrosion coatings, zinc plating is relatively inexpensive while still providing good protection.

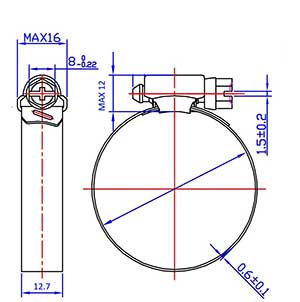

Drawing:
How to choose the size:
- Method A: Measuring the Pipe's Outer Diameter
Measure the outer diameter (OD) of the pipe. If the OD is 35 mm, select a hose clamp with a 21-38 mm diameter range.
- Method B: Measuring the Pipe's Circumference
Measure the outer circumference of the pipe. If the circumference is 150 mm, calculate the OD using the formula: OD = Circumference ÷ π (≈3.14)
Example: 150 ÷ 3.14 ≈ 47.8 mm
Based on the calculated OD (47.8 mm), choose a hose clamp with a 27-51mm diameter range.
Dimension chart:
| 1/2" (12.7mm) band width Material: W2 201/304 |
||||||||
| Part No | SAE Size |
Dimension | Part No | SAE Size |
Dimension | |||
| mm | in inch | mm | in inch | |||||
| AM12W220 | 6 | 11-20 | 0.44"-0.78" | AM12W283 | 44 | 59-83 | 2.31"-3.25" | |
| AM12W223 | 8 | 13-23 | 0.5"-0.91" | AM12W289 | 48 | 65-89 | 2.56"-3.5" | |
| AM12W227 | 10 | 14-27 | 0.56"-1.06" | AM12W295 | 52 | 72-95 | 2.81"-3.75" | |
| AM12W232 | 12 | 18-32 | 0.69"-1.25" | AM12W2102 | 56 | 78-102 | 3.06"-4" | |
| AM12W238 | 16 | 21-38 | 0.81"-1.5" | AM12W2108 | 60 | 84-108 | 3.31"-4.25" | |
| AM12W244 | 20 | 21-44 | 0.81"-1.75" | AM12W2114 | 64 | 91-114 | 3.56"-4.5" | |
| AM12W251 | 24 | 27-51 | 1.06"-2" | AM12W2127 | 72 | 103-127 | 4.06"-5" | |
| AM12W257 | 28 | 33-57 | 1.31"-2.25" | AM12W2140 | 80 | 117-140 | 4.62"-5.5" | |
| AM12W264 | 32 | 40-64 | 1.56"-2.5" | AM12W2152 | 88 | 130-152 | 5.12"-6" | |
| AM12W270 | 36 | 46-70 | 1.81"-2.75" | AM12W2165 | 96 | 141-165 | 5.56"-6.5" | |
| AM12W276 | 40 | 50-76 | 2"-3" | AM12W2178 | 104 | 157-178 | 6.18"-7" | |
Application：

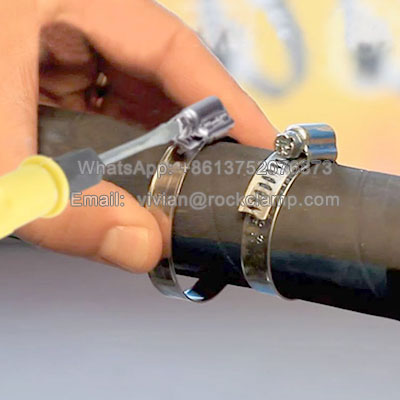

Screw hose clamp for hose are widely used in various industries due to their adjustability, durability, and strong clamping force.
- Automotive & Transportation
- Industrial & Mechanical Systems
- Plumbing & Water Systems
- Agricultural & Irrigation Equipment
- Home Appliances & DIY Repairs

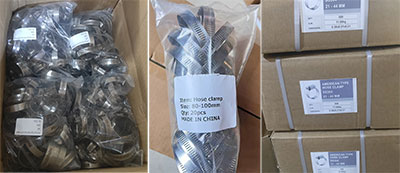

Package：small bag/box + outer carton + pallet
- Small sizes are 100pcs/50pcs bulk package in bag.
- Bigger sizes are 20pcs/bag cross-stacked in bag.
- Custom designed label stick on outer cartons.
