American type worm drive clamp

Heavy-Duty American Type Worm Drive Hose Clamps

Our American Type Hose Clamps are engineered for reliability and high-tension sealing. Characterized by their perforated band and four-piece housing construction, these clamps are the industry standard for automotive, aircraft, and general industrial hose connections across the Americas and beyond.

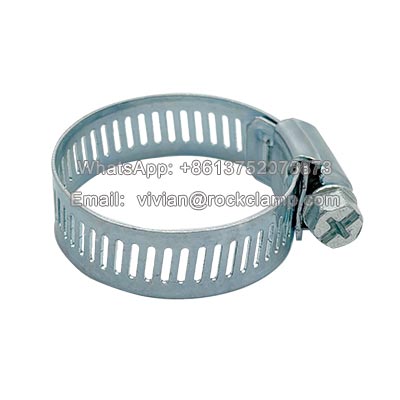

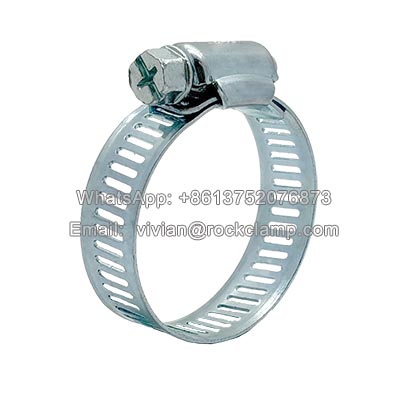

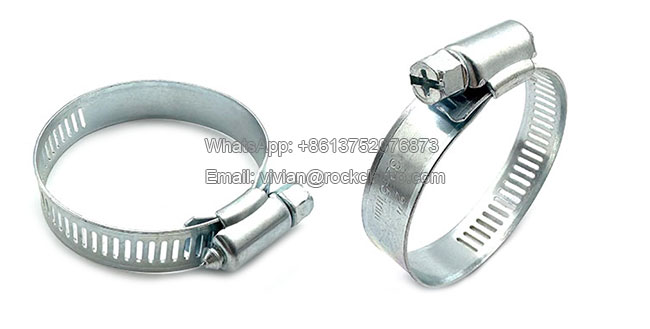

The American type hose clamp is a kind of worm drive clamp. It features a perforated galvanized steel band paired with a worm gear tightening mechanism, offering superior adjustability and secure fastening for hose applications. The perforations along the band reduce weight while maintaining structural integrity, ensuring even pressure distribution.

Material:

W1 - All parts carbon steel with zinc plated



How to use:

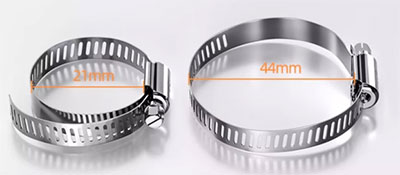

Taking the common size 21-44 as an example:

- In delivery state, the clamp’s inner diameter must exceed the maximum range (32mm) to allow easy fitting over the hose.

- When fully tightened, its diameter should remain below the minimum range (18mm) to ensure a secure, slip-free grip.

- The recommended hose outer diameter must fall within the nominal adjustment range (18-32mm) for optimal clamping performance.

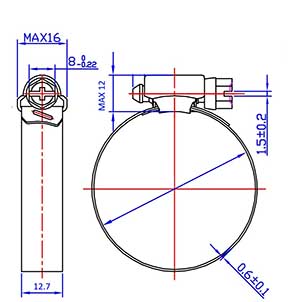

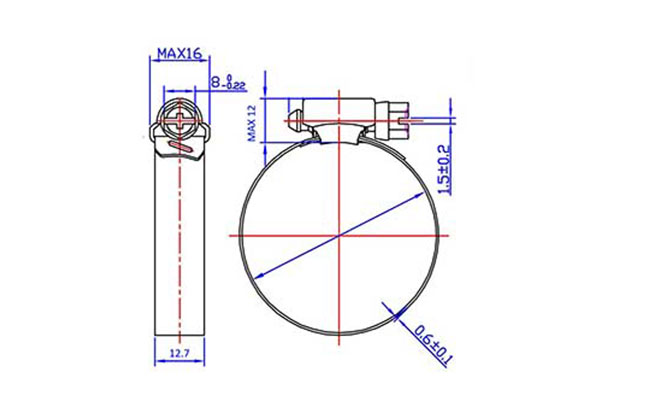

Drawing:



Dimension Chart:

1/2" (12.7mm) band width Material: W1
Part No	SAE Size	Dimension			Part No	SAE Size	Dimension
		mm	in inch				mm	in inch
AM12W120	6	11-20	0.44"-0.78"		AM12W183	44	59-83	2.31"-3.25"
AM12W123	8	13-23	0.5"-0.91"		AM12W189	48	65-89	2.56"-3.5"
AM12W127	10	14-27	0.56"-1.06"		AM12W195	52	72-95	2.81"-3.75"
AM12W132	12	18-32	0.69"-1.25"		AM12W1102	56	78-102	3.06"-4"
AM12W138	16	21-38	0.81"-1.5"		AM12W1108	60	84-108	3.31"-4.25"
AM12W144	20	21-44	0.81"-1.75"		AM12W1114	64	91-114	3.56"-4.5"
AM12W151	24	27-51	1.06"-2"		AM12W1127	72	103-127	4.06"-5"
AM12W157	28	33-57	1.31"-2.25"		AM12W1140	80	117-140	4.62"-5.5"
AM12W164	32	40-64	1.56"-2.5"		AM12W1152	88	130-152	5.12"-6"
AM12W170	36	46-70	1.81"-2.75"		AM12W1165	96	141-165	5.56"-6.5"
AM12W176	40	50-76	2"-3"		AM12W1178	104	157-178	6.18"-7"



Features:

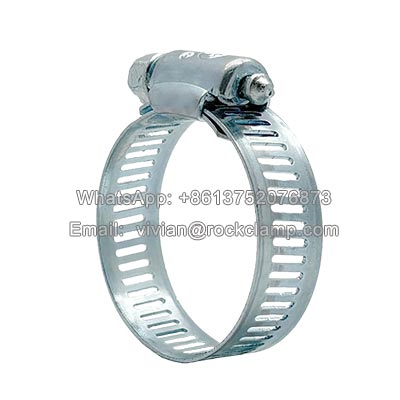

The worm drive clamp features the galvanized coating, which enhances corrosion resistance, making it suitable for outdoor or high-moisture environments. Designed for durability, the worm drive clamp gear system allows precise tensioning and a vibration-resistant grip, ideal for automotive, industrial, and plumbing uses.

• SAE J1508 Compliance: Manufactured to meet or exceed Society of Automotive Engineers standards for dimensions, materials, and torque.

• High-Torque Performance: The interlocked housing and precision-cut screw allow for superior tightening force without the housing tilting or the band stripping.

• Versatile Material Grades: Available in W2 (Partial Stainless), W4 (Full SS304), and W5 (Full SS316) to suit different budgets and corrosion resistance needs.

• Flexible Installation: Features a 5/16" (8mm) slotted hex head screw, compatible with screwdrivers, nut drivers, or pneumatic tools for fast assembly.

• Wide Clamping Range: Our modular production allows for diameters ranging from micro-series (7/32") to large industrial sizes (10"+).



Application:

This American type hose clamp is widely used across industries due to their adjustability, durability, and strong clamping force. The American type hose clamp perforated band and screw-driven mechanism make them ideal for various sealing and fastening applications, such as:

- Industrial & Mechanical Systems

Hydraulic & pneumatic hose connections

Compressed air lines & fluid transfer systems

Pumps, compressors, and HVAC equipment

Conveyor belt systems & machinery lubrication lines

- Plumbing & Water Systems

Household & commercial plumbing connections

Water filtration & irrigation systems

Pool & spa equipment tubing

Water heater & boiler connections

- Home Appliances & DIY Repairs

Washing machine & dishwasher hoses

Refrigerator water lines



General-purpose hose repairs & modifications

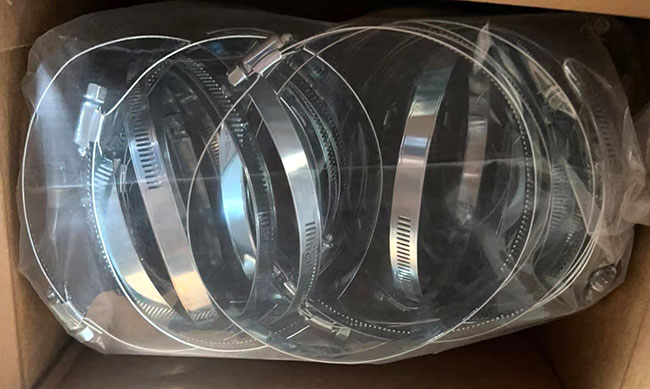

Package: inner bag/box + outer carton + pallet

FAQ

Q1: What is the difference between American and German type hose clamps?

A: The primary difference is the band design. American clamps use a perforated band (slots cut through the band), whereas German clamps have a non-perforated, embossed band. American clamps are typically preferred in the US market for their high-torque performance and wide availability of SAE sizes.

Q2: Can I get these clamps with a quick-release or thumb-screw option?

A: Yes. While our standard American type uses a hex screw, we also manufacture Quick Release and Thumb-Screw (Butterfly) variations for applications requiring frequent manual adjustments without tools.

Q3: How do I prevent the perforated band from damaging soft hoses?

A: For very soft silicone or thin-walled hoses, we recommend our Lined American Clamps. These feature an internal liner that covers the perforations, providing the strength of an American clamp with the protection of a smooth-band design.
