Description：
1/2”band width worm drive clamp, is also called as metal worm gear clamp.It is engineered based on the operating principle of worm gear mechanisms.
-- What is a worm gear?
-- A worm gear system consists of a helical worm shaft that engages with a mating worm wheel, creating a 90-degree change in rotation axis. The relative positioning of these components determines the resulting plane of motion.

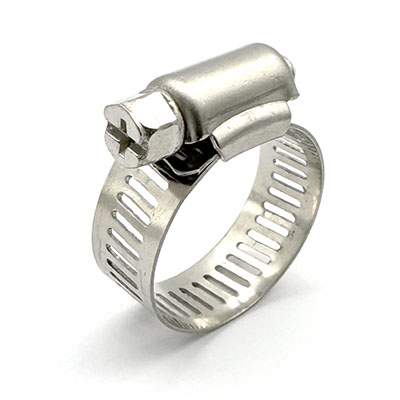

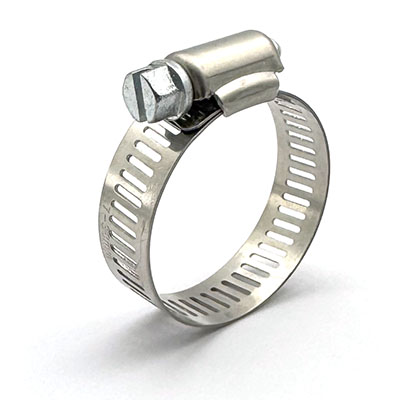

Just like the worm gear mechanisms, the metal worm gear clamp is a precision-engineered fastening solution consisting of three core components:
- A rolled steel band with uniformly spaced perforations
- A worm gear screw mechanism
- A formed housing that encapsulates the screw assembly.
When the worm rotates, its threads mesh with the gear teeth, causing the band to tighten. This reduces the clamp’s diameter, creating a secure, uniform seal around the hose or pipe. The self-locking nature of the worm gear prevents loosening under vibration, ensuring a reliable hold.

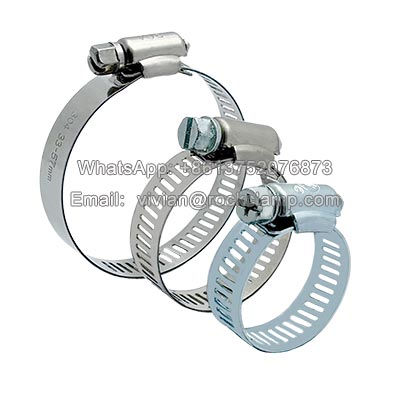

Material:
Multiple material options available.
W1 - All parts carbon steel with zinc plated. (screw, hosing and band)
W2 - Hosing and band stainless steel 201 or 301, screw carbon steel with zinc/nickel plated

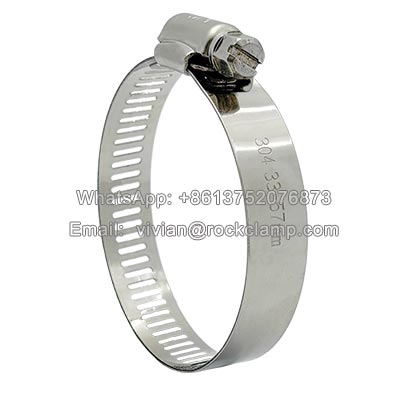

W4 - All parts stainless steel 201 or 304. (screw, hosing and band)

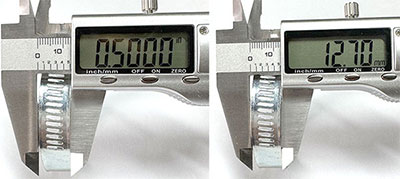

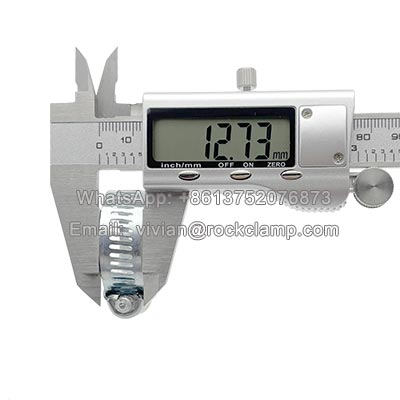

Band width 1/2" in inch or 12.7mm in metric:
Feature：
The metal worm gear clamp is designed to meet SAE J1508 Type F performance standards.
- Features radial compression for 360° uniform clamping pressure
- Perforated band design provides enhanced ventilation, improved tension distribution and reduced material fatigue
- Zinc-plated or stainless steel construction for corrosion resistance
- Available in standard sizes from 1" to 20" diameters with custom configurations upon request.

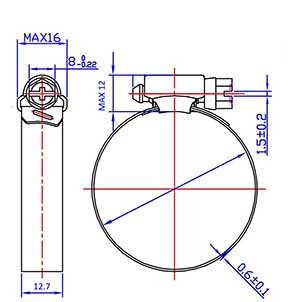

Drawing:
Dimension chart:
| 1/2" (12.7mm) band width Material: W1, W2, W4 |
||||||||
| Part No | SAE Size |
Dimension | Part No | SAE Size |
Dimension | |||
| mm | in inch | mm | in inch | |||||
| AM12W20 | 6 | 11-20 | 0.44"-0.78" | AM12W83 | 44 | 59-83 | 2.31"-3.25" | |
| AM12W23 | 8 | 13-23 | 0.5"-0.91" | AM12W89 | 48 | 65-89 | 2.56"-3.5" | |
| AM12W27 | 10 | 14-27 | 0.56"-1.06" | AM12W95 | 52 | 72-95 | 2.81"-3.75" | |
| AM12W32 | 12 | 18-32 | 0.69"-1.25" | AM12W102 | 56 | 78-102 | 3.06"-4" | |
| AM12W38 | 16 | 21-38 | 0.81"-1.5" | AM12W108 | 60 | 84-108 | 3.31"-4.25" | |
| AM12W44 | 20 | 21-44 | 0.81"-1.75" | AM12W114 | 64 | 91-114 | 3.56"-4.5" | |
| AM12W51 | 24 | 27-51 | 1.06"-2" | AM12W127 | 72 | 103-127 | 4.06"-5" | |
| AM12W57 | 28 | 33-57 | 1.31"-2.25" | AM12W140 | 80 | 117-140 | 4.62"-5.5" | |
| AM12W64 | 32 | 40-64 | 1.56"-2.5" | AM12W152 | 88 | 130-152 | 5.12"-6" | |
| AM12W70 | 36 | 46-70 | 1.81"-2.75" | AM12W165 | 96 | 141-165 | 5.56"-6.5" | |
| AM12W76 | 40 | 50-76 | 2"-3" | AM12W178 | 104 | 157-178 | 6.18"-7" | |
Application：
1/2 band width metal worm gear clamp is widely used in many field.
- Automotive coolant systems
- Industrial hydraulic lines
- Marine engine compartments
- Agricultural irrigation systems
- HVAC duct connections

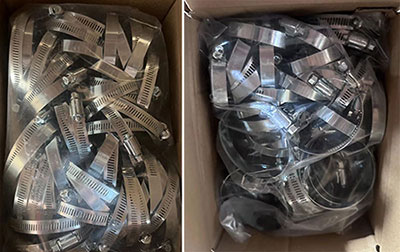

Package：small bag/box + outer carton + pallet
