SAE J1508 Compliant Hose Clamps for Automotive & Industry

Our SAE J1508 series represents the benchmark for hose fastening reliability. These clamps are engineered to meet the rigorous dimensional, material, and performance standards set by the Society of Automotive Engineers. Whether for heavy-duty truck cooling or precision automotive fuel lines, our J1508 clamps ensure a leak-proof seal under extreme vibration and pressure.

The J 1508 is a Chinese Mechanical Industry Standard (JB/T) that specifies the technical requirements, dimensions, testing methods, and classifications for a specific type of worm drive hose clamp. In simple terms, it is the Chinese standard equivalent to what is commonly known internationally as a worm gear hose clamp or a band clamp.

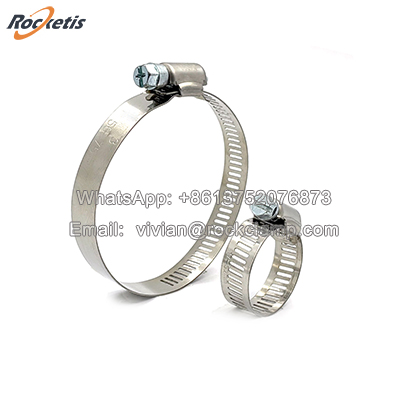

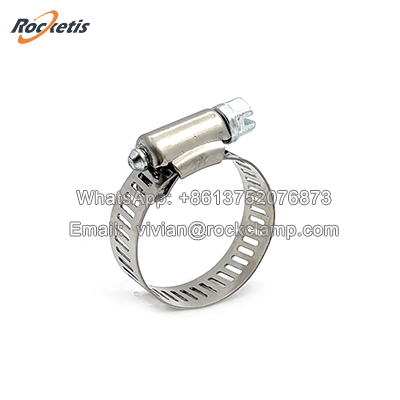

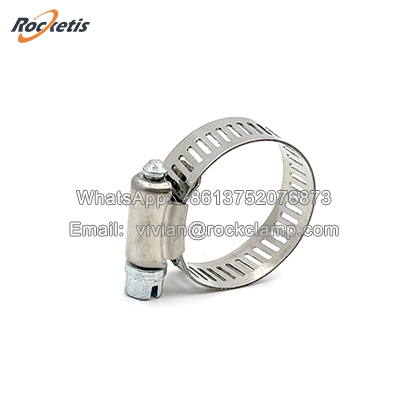

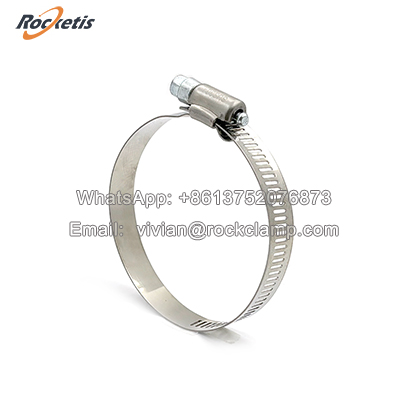

W2 perforated band worm drive hose clamp is one type of J1508 hose clamps. It is a specific, high-quality type of worm gear clamp recognized and standardized internationally. The "W2" means that material is  Hosing and band stainless steel 201 or 301, screw carbon steel with zinc/nickel plated. It is considered a premium, heavy-duty clamp and is one of the most common and reliable types used globally for securing hoses in high-pressure and high-vibration environments.

Key Features of J 1508 hose clamps:

Worm Drive Mechanism: This is the defining feature. The clamp consists of a perforated stainless steel band and a housing that contains a worm gear. A screw (the worm) is turned, which engages with the gear teeth on the band, allowing for:

Even Circumferential Pressure: The clamp tightens uniformly around the hose, providing a secure, leak-proof seal.

High Clamping Force: The mechanical advantage of the worm gear allows for very high clamping force to be applied.

Self-Locking: The mechanism is inherently self-locking, meaning it resists loosening under vibration, which is critical in automotive and industrial applications.

Typical Classifications (Per SAE J1508):

• Type F: Standard worm gear clamps (1/2" band width) for general industrial and automotive use.

• Type M: Micro-series worm gear clamps (5/16" band width) for small diameter fuel and vacuum lines.

• Type T: Heavy-duty T-bolt clamps for high-pressure turbocharger and charge air cooler (CAC) systems.

Design Advantages:

Even Pressure Distribution: The design provides a uniform 360-degree sealing pressure around the hose, preventing leaks.

Exceptional Vibration Resistance: The positive engagement between the screw and the perforated band makes it virtually impossible for the clamp to loosen under vibration, a critical feature in automotive, marine, and industrial applications.

High Clamping Force: It can achieve very high clamping forces without damaging the band or slipping, making it suitable for pressurized systems.

Reusable: It can be easily loosened, repositioned, and re-tightened multiple times without losing its clamping ability.

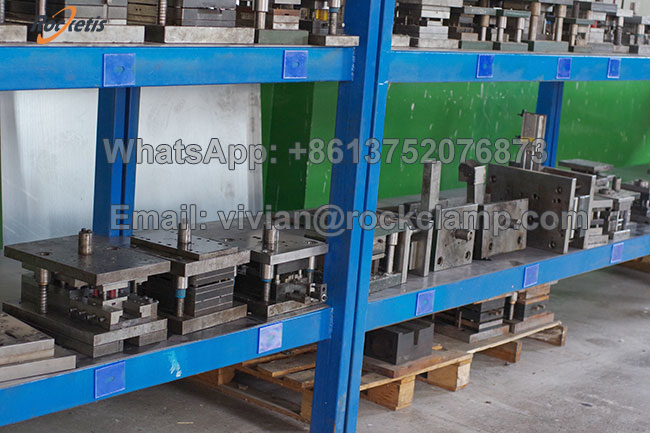

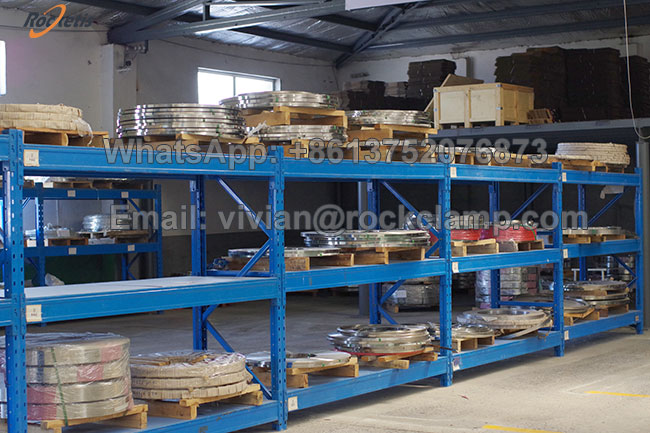

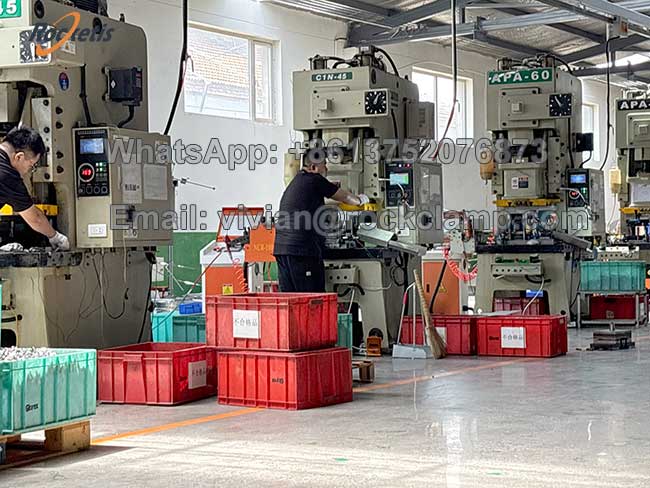

Production workshop of J 1508 hose clamps

FAQ

Q1: What does SAE J1508 compliance mean for my project?

A: SAE J1508 is the primary standard for hose clamps in the North American automotive industry. Compliance ensures that the clamps have a specific band strength, screw drive torque, and dimensional consistency, reducing the risk of premature failure in critical systems.

Q2: Are these clamps suitable for high-vibration engine environments?

A: Yes. Our SAE J1508 Type F and Type T clamps are specifically designed with reinforced housings to maintain constant tension even in high-vibration environments like diesel engines and turbochargers.

Q3: Can I get a Certificate of Conformance (CoC) with my order?

A: Absolutely. As an ISO 9001 certified manufacturer, we provide full material certifications and test reports ensuring every shipment adheres to the SAE J1508 standard.
