Industrial Applications of DIN 3016 Rubber Lined Clamps

Engineering Excellence: DIN 3016 P-Clips

Our DIN 3016 retaining clamps (P-Clips) are the industry standard for securing pipes, cables, and hoses. Featuring a high-quality rubber profile, these clamps provide superior vibration damping and protect the contact surface from wear and friction.

It is the specific section of the German industrial standard that defines the requirements for light-duty constant tension (spring) hose clamps. This standard establishes the precise dimensions, material specifications, performance criteria, and testing methods for these clamps, ensuring they provide reliable, maintenance-free sealing in applications with frequent thermal cycling, particularly where space and weight are considerations.

Rubber lined P clamp is one type of DIN 3016 clamps. They are featured a zinc-plated mild steel band with an inner EPDM rubber lining, providing both robust metal support and vibration-dampening protection.

Key Features of DIN 3016 clamps

• Vibration & Sound Insulation: The EPDM rubber liner significantly reduces noise and vibration transmission, making it ideal for moving machinery and engines.

• Reinforced Bolt Holes: The clamp ends are reinforced with metal plates (per DIN 3016 standards) to prevent tearing or deformation under high mechanical loads.

• Contoured Fit: The precisely formed P-shape ensures a tight, form-fitting grip on the pipe or cable without causing crushing.

• Corrosion Resistance: Available in multiple material grades to withstand everything from indoor environments to harsh offshore marine conditions.

Material Options

• W1: Zinc-plated steel for general industrial use.

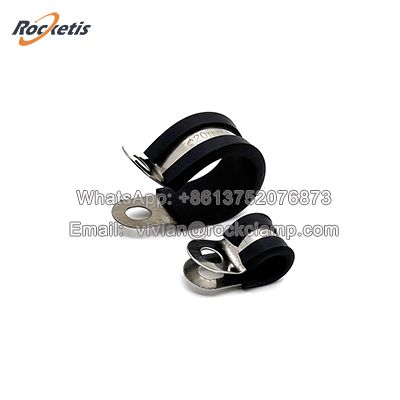

• W4: Grade 304 Stainless Steel for excellent outdoor durability.

• W5: Grade 316 Stainless Steel for maximum resistance in salt water and chemical environments.

• Liner: High-grade EPDM (Heat resistant: -40°C to +120°C, UV and ozone resistant).

Constant Tension Principle:

The core function is to automatically maintain a consistent clamping force on a hose connection.

As the hose and fitting expand and contract with temperature changes, the spring steel clamp compensates, ensuring a leak-free seal whether the system is hot or cold. This prevents leaks from contraction and damage from over-compression during expansion.

Common Applications

DIN 3016 clamps are designed for specific, light-duty OEM applications:

Automotive Industry: Frequently used on smaller coolant hoses (e.g., heater cores), vacuum lines, and other secondary fluid connections within the engine bay where large thermal cycles occur.

Appliances: Connections in washing machines, dishwashers, and other household appliances involving water lines.

General Light Industrial Equipment: Low-pressure fluid and air connections on machinery.

DIN 3016 specifies a light-duty, constant tension hose clamp engineered for applications with thermal cycling where lower clamping force is required. Its electro-galvanized spring steel construction and narrow design make it a cost-effective and reliable solution for OEMs in the automotive and appliance industries.

FAQ: DIN 3016 Retaining Clamps

• Q: What are the benefits of the rubber lining in DIN 3016 clamps?

  • A: The rubber lining (usually EPDM) serves three main purposes: it prevents vibration damage, compensates for thermal expansion of the pipe, and protects the pipe surface from electrical conduction and mechanical scratching.

• Q: Can these clamps be used in high-temperature environments?

  • A: Our standard EPDM liners handle up to 120°C. For higher temperature requirements (up to 200°C+), we can supply Silicone or Viton liners upon request.

• Q: What does the "Band Width" signify in sizing?

  • A: Band width (e.g., 12mm, 15mm, 20mm) determines the load-bearing capacity. Wider bands provide a larger contact area, which is better for supporting heavier pipes or fragile hoses.

• Q: Are your P-clips compliant with international standards?

  • A: Yes, our clamps are manufactured strictly according to the DIN 3016 dimensions and tolerances, ensuring compatibility for global engineering projects.
