Marine Grade SS316 Worm Gear Hose Clamps | Ultimate W5 Corrosion Resistance

The Ultimate Barrier Against Saltwater: SS316 (W5) Worm Gear Clamps

When standard stainless steel isn't enough, our SS316 Worm Gear Hose Clamps provide the highest level of protection available. Unlike SS304, our W5-grade SS316 alloy contains 2-3% Molybdenum, which creates a superior defense against pitting and crevice corrosion in chloride-rich environments.

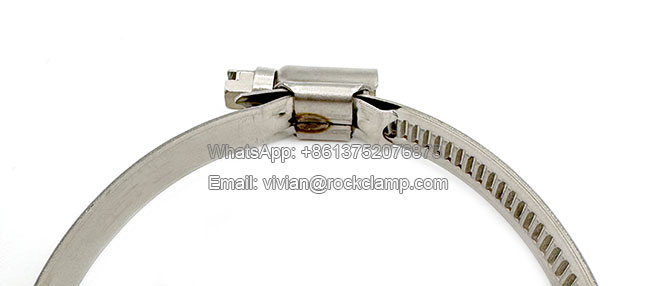

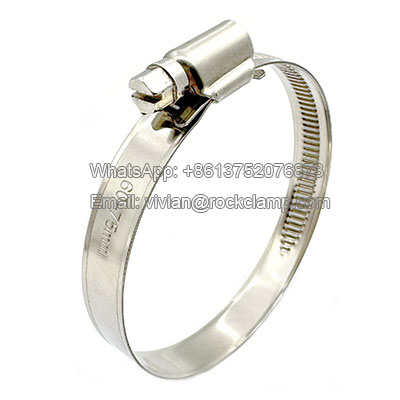

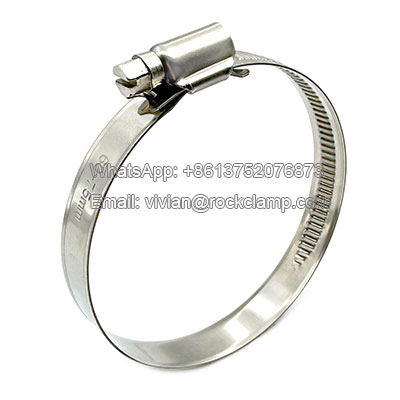

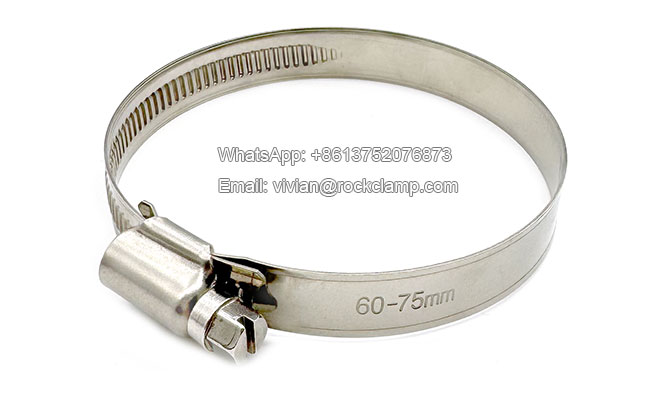

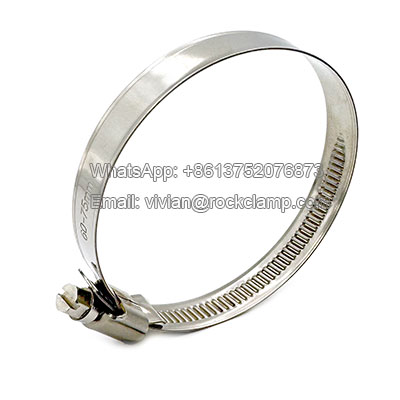

This 316 stainless steel hose clamps is a kind of worm gear hose clamp. It features a solid 316 stainless steel band without perforations(embossed hose clamps), reinforced by embossed patterns for structural integrity. The worm drive mechanism delivers uniform circumferential tightening force, creating a leak-proof seal even under high pressure.

This advanced design represents the premium tier of worm gear hose clamp, combining material science with mechanical engineering to solve the most challenging hose connection requirements. The 316 stainless steel hose clamps construction particularly excels in offshore, pharmaceutical and chemical plant applications where failure is not an option.

Why Choose Our SS316 (W5) Series?

• Marine-Grade Performance: Specifically tested for prolonged exposure to seawater, making them the standard for yacht building and offshore oil rigs.

• Full SS316 Construction: Band, housing, and screw are all made from AISI 316 stainless steel, preventing galvanic corrosion between components.

• Acid & Alkali Resistance: Ideal for the pharmaceutical and chemical industries where exposure to corrosive cleaning agents is constant.

• Extreme Temperature Stability: Maintains structural integrity in temperatures ranging from cryogenic levels up to 800°C.

Features:

316 stainless steel hose clamps Construction - Contains 2-3% molybdenum for exceptional resistance to chlorides, acids and saltwater corrosion, making it ideal for marine, chemical processing and coastal applications. Offers 3-5x longer service life than 304 stainless in aggressive environments.

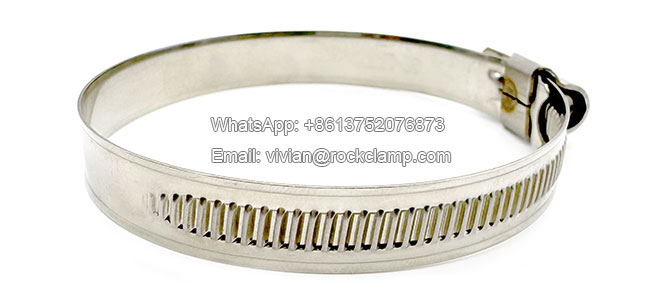

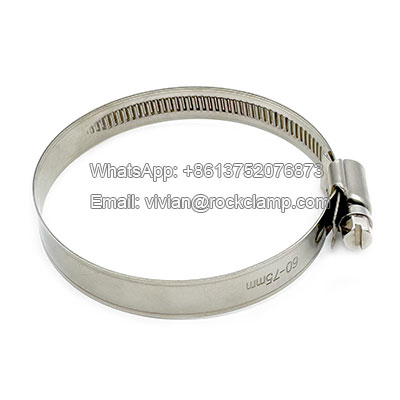

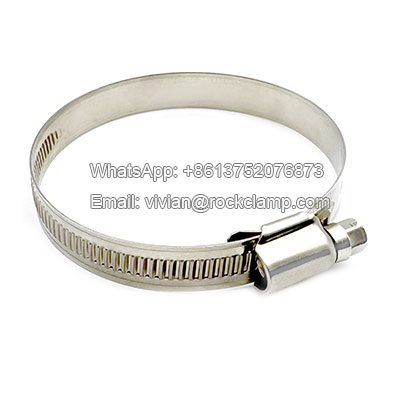

Embossed hose clamps solid non-punched band design - The embossed continuous band eliminates traditional perforation weak points, increasing tensile strength by 30% and preventing stress fractures. Maintains consistent clamping force without band deformation under vibration or thermal cycling.

Precision worm gear hose clamp mechanism - CNC-machined screw engages with rolled band threads to provide smooth, controlled tightening.

Heavy-Duty Sealing Performance

Specialized Surface Finish - Electropolished interior surface prevents galling and minimizes hose abrasion, while exterior satin finish resists fingerprints and maintains appearance.

Application:

The combination of crevice - corrosion-resistant design and ultra-clean surface finish makes this clamp suitable for both extreme industrial environments and ultra-high-purity applications where contamination must be avoided.

Marine Engine Piping (Seawater Cooling): Specifically engineered for saltwater environments, these clamps provide corrosion-free performance in raw water cooling systems, bilge pump connections and through-hull fittings

Food Processing Equipment: Beverage transfer lines, Dairy processing equipment

Industrial Chemical Transfer Lines: Solvent transfer systems, Petrochemical pipelines

Corrosive Environment HVAC Installations: Chemical plant ventilation, Flue gas exhaust systems

Additional Specialty Applications:

 - Offshore oil & gas production systems

 - Desalination plant piping

 - Nuclear facility secondary cooling

 - Marine aquaculture systems

 - Power plant scrubber systems

FAQ

Q1: How do I verify that these are truly SS316 and not SS304?

A: Our SS316 (W5) Worm Gear Clamps are physically stamped with "316" or "W5" for easy identification. Furthermore, we provide spectrometer test reports with every batch to verify the Molybdenum and Nickel content.

Q2: Is SS316 necessary for indoor plumbing?

A: For standard indoor freshwater plumbing, SS304 is usually sufficient. However, if the environment involves chemical cleaners, swimming pool chemicals (chlorine), or coastal humidity, upgrading to SS316 will significantly extend the service life of the connection.

Q3: Can these clamps be used in food-grade environments?

A: Yes. SS316 is the preferred material for the food and beverage industry due to its superior resistance to food acids and aggressive sanitization protocols.
