Description:

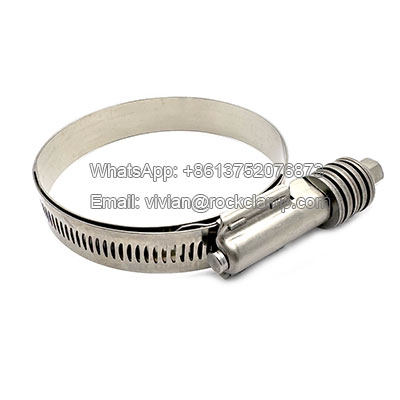

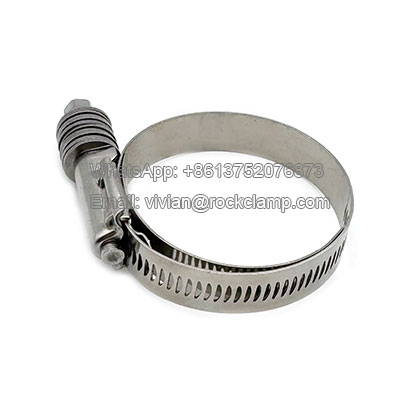

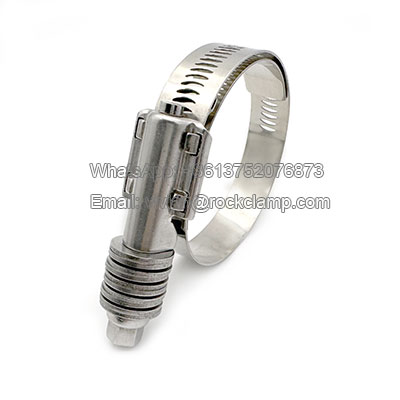

The 15.8mm band width constant torque clamp is also know as torque clamps. It is a high-strength pipe fastening system used for heavy industrial working conditions. It adopts a heavy-duty worm gear mechanism to provide the ultimate solution for pipe connections in the fields of petrochemicals, heavy machinery, and shipbuilding.

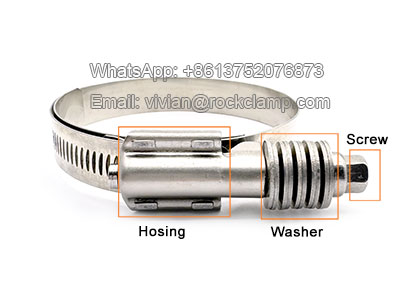

Component:
Band, hosing, screw, washers
Material:
W2 - Band and hosing SS301/304, screw galvanized steel, washer SS410.
W4 - Band, hosing and screw SS301/304, washer SS410.
Torque clamps Features:
- Powerful Adjustable Clamping Force: Delivers strong and adjustable clamping power to ensure secure and reliable pipe connections, maintaining constant tension even under vibration or thermal expansion conditions.
- Robust Stainless Steel Construction: The main body is constructed from high-grade stainless steel, making it suitable for extreme industrial environments with excellent corrosion resistance, high-pressure tolerance, and mechanical stress resistance.
- Self-Locking Mechanism: The innovative self-locking design maintains consistent clamping force without loosening over time, reducing maintenance requirements while enhancing operational safety.
- Wide Compatibility: Accommodates various pipe diameters and materials (both metallic and non-metallic), suitable for both rigid and flexible piping systems.
- Tool-Free Installation & Adjustment: Simple installation and adjustment requiring no special tools - just a standard wrench for easy tightening.

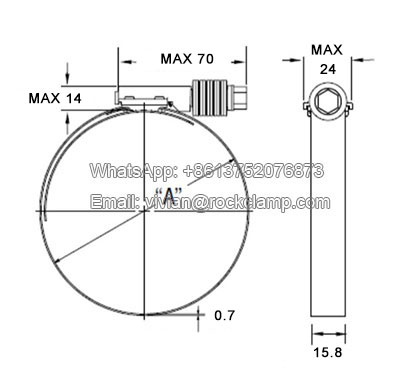

Drawing:
Dimension chart:
| Torque clamps | |||
| Part No | Band Width * Thick |
Dimension Range | |
| in mm | in inch | ||
| CT16W45 | 15.8 * 0.7 | 26-45 | 1"- 1 3/4" |
| CT16W54 | 15.8 * 0.7 | 32-54 | 1 1/4"- 2 1/8" |
| CT16W67 | 15.8 * 0.7 | 45-67 | 1 3/4"- 2 5/8" |
| CT16W79 | 15.8 * 0.7 | 57-79 | 2 1/4"- 3 1/8" |
| CT16W92 | 15.8 * 0.7 | 70-92 | 2 3/4"- 3 5/8" |
| CT16W105 | 15.8 * 0.7 | 83-105 | 3 1/4"- 4 1/8" |
| CT16W118 | 15.8 * 0.7 | 95-118 | 3 3/4"- 4 5/8" |
| CT16W130 | 15.8 * 0.7 | 108-130 | 4 1/4"- 5 1/8" |
| CT16W143 | 15.8 * 0.7 | 121-143 | 4 3/4"- 5 5/8" |
| CT16W156 | 15.8 * 0.7 | 133-156 | 5 1/4"- 6 1/8" |
| CT16W168 | 15.8 * 0.7 | 146-168 | 5 3/4"- 6 5/8" |
| CT16W181 | 15.8 * 0.7 | 159-181 | 6 1/4"- 7 1/8" |
| CT16W194 | 15.8 * 0.7 | 172-194 | 6 3/4"- 7 5/8" |
| CT16W206 | 15.8 * 0.7 | 184-206 | 7 1/4"- 8 1/8" |
| CT16W219 | 15.8 * 0.7 | 197-219 | 7 3/4"- 8 5/8" |
| CT16W232 | 15.8 * 0.7 | 210-232 | 8 1/4"- 9 1/8" |

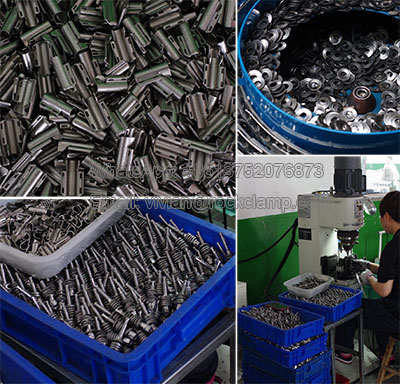

Workshop:

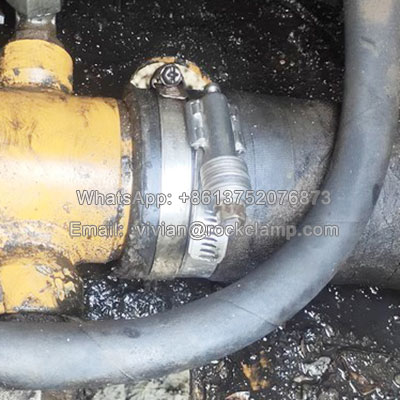

Application:
Torque clamps are engineered for demanding industrial environments where vibration, thermal expansion, or mechanical stress could compromise pipe integrity. Their unique self-adjusting mechanism ensures sustained clamping force, making them ideal for:
- Pipeline Systems: Maintains seal integrity in high-pressure oil/gas transmission lines
- Offshore Platforms: Resists saltwater corrosion and vibration in subsea applications
- High-Temperature Processes: Stable performance in reactor feed/effluent lines
- Flare Systems: Secure connections in vibration-prone emergency venting
- Steam Lines: Compensates for thermal expansion in boiler feed systems
- Engine Room Piping: Prevents loosening from vessel vibrations
Package: small bag/box + outer carton + pallet
