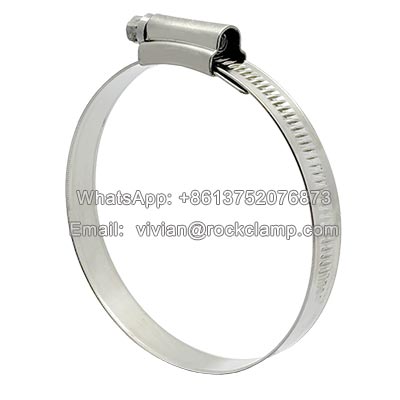

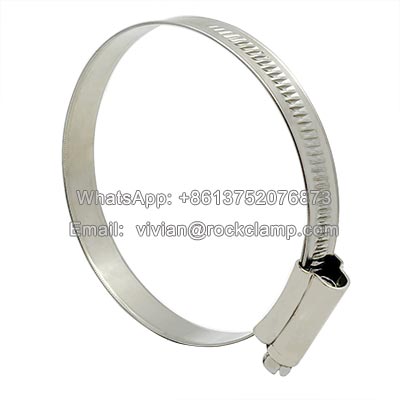

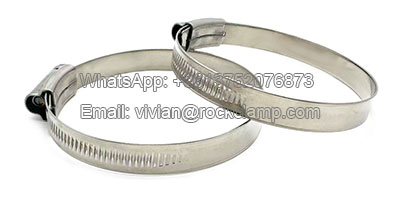

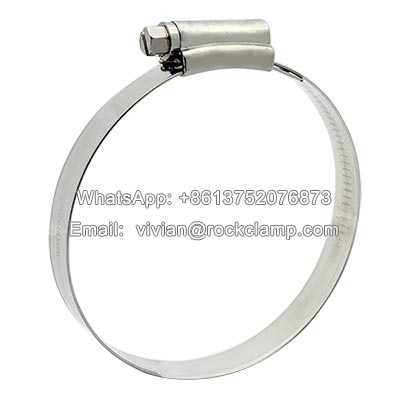

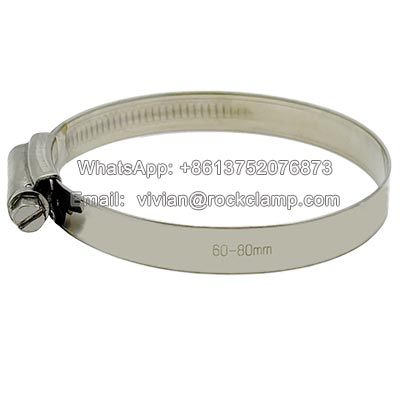

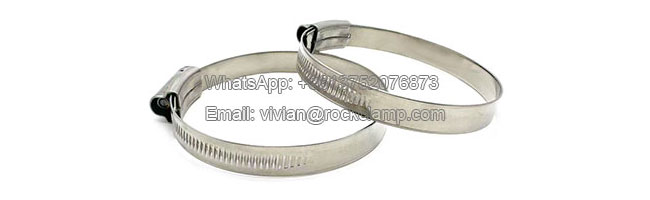

W4 SS British type hose clamp

Description:

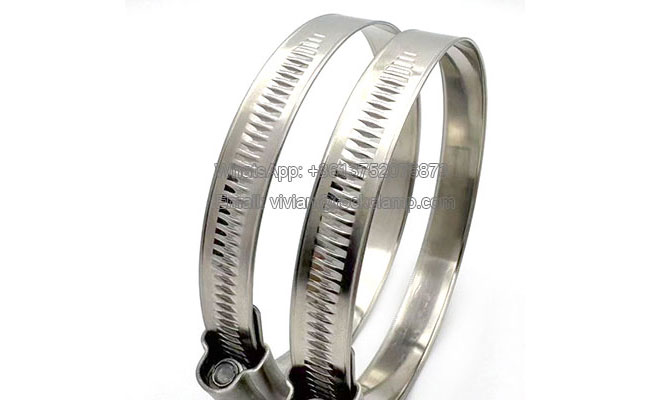

The stainless steel British type hose clamp is also called solid band hose clamps, complies with BS-5315 international standard. While maintaining the fundamental three-component structure (clamp hosing, adjusting screw and stainless steel band) same to traditional worm drive clamps, it features distinct engineering enhancements: the inner surface of the band is smooth and mirror-polished for optimal sealing, while the exterior employs precision-rolled threads for accurate torque control.

Material:

W4 - All parts stainless steel 301/304

Features:

Traditional threaded hose clamps carry the risk of thread teeth embedding into the hose surface during tightening, which under prolonged vibration conditions may cause structural tearing of the conduit material. By contrast, the British type hose clamp (solid band hose clamps) smooth inner band design completely eliminates this failure mode. The non-threaded structure offers three key advantages:

  - The increased effective load-bearing area ensures uniform distribution of clamping force, making it particularly suitable for damage-free fastening of soft materials like silicone and rubber tubes

  - Its full-circumference seamless contact provides exceptional performance in critical sealing applications such as fuel lines and hydraulic systems, significantly reducing media permeation risks

  - The continuous smooth contact surface effectively prevents localized stress concentration that could lead to conduit deformation.

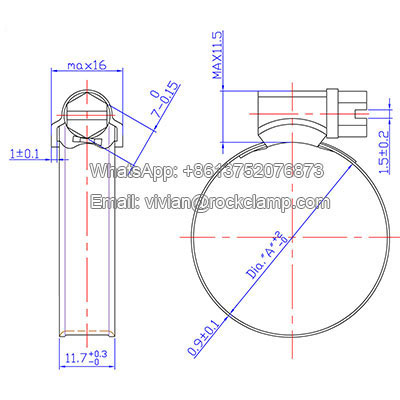

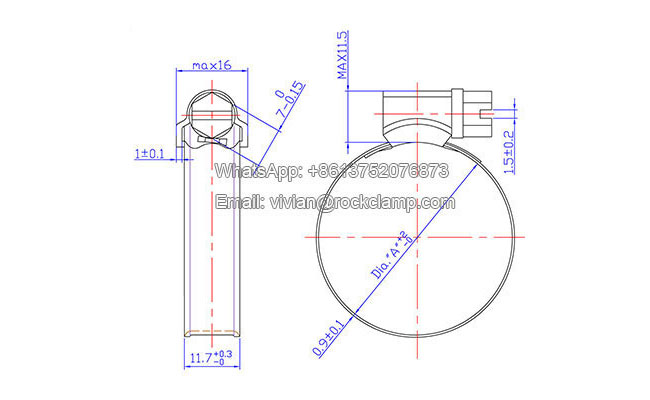

Drawing:

Dimension chart:

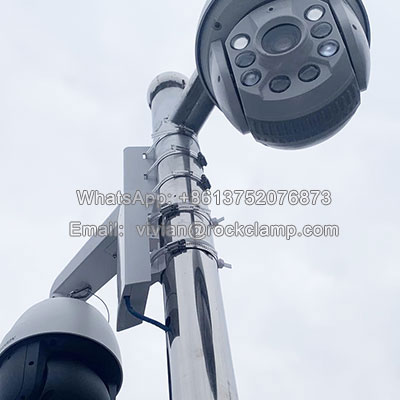

Application:

The solid band hose clamps smooth inner band with seamless bonding characteristics delivers exceptional performance in critical sealing applications such as fuel lines and hydraulic systems, Fuel delivery lines, pneumatic control systems etc, significantly reducing fluid leakage risks.

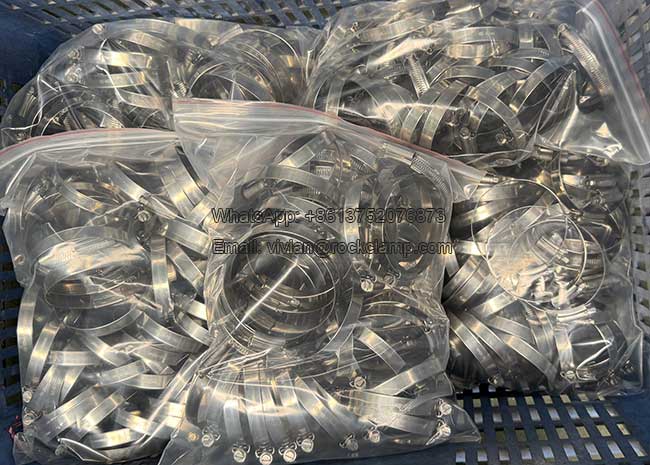

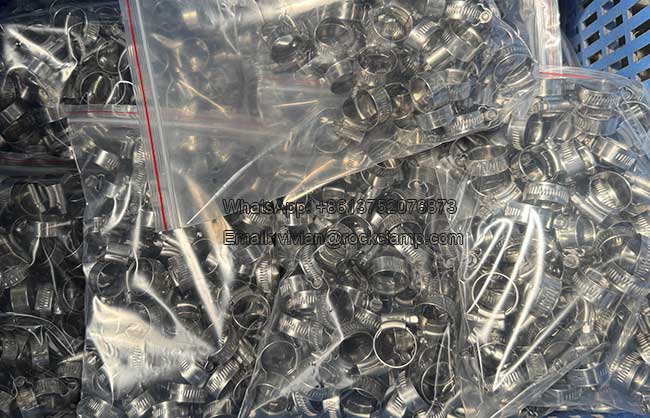

Package: small bag/box + outer carton + pallet
