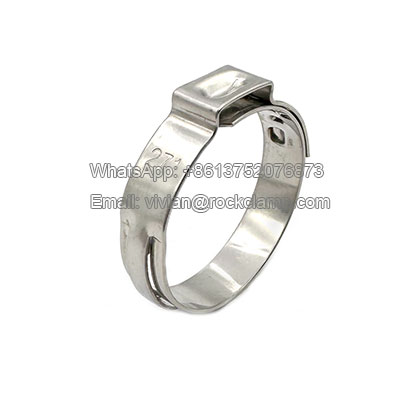

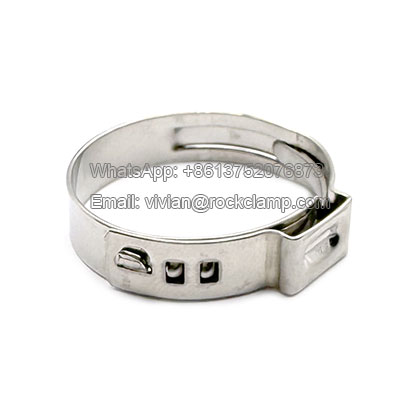

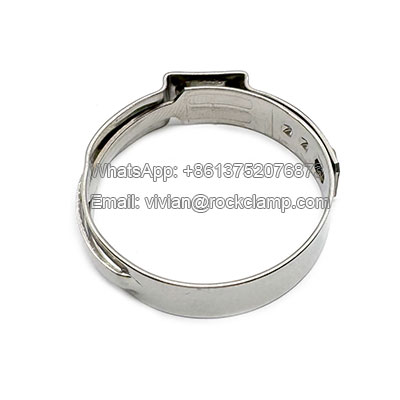

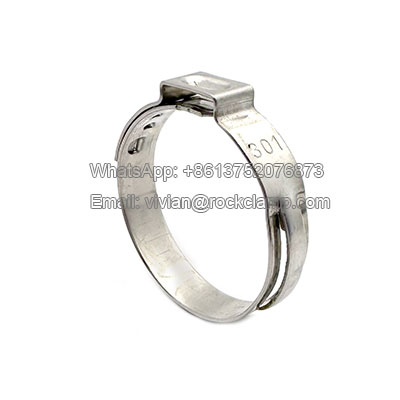

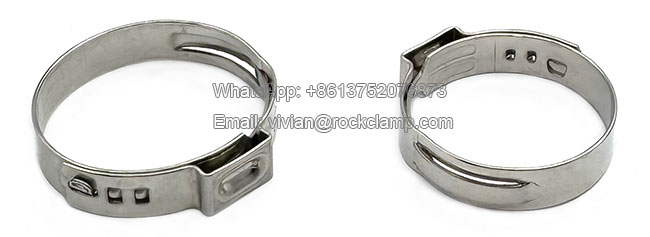

Stainless steel single ear hose clamps

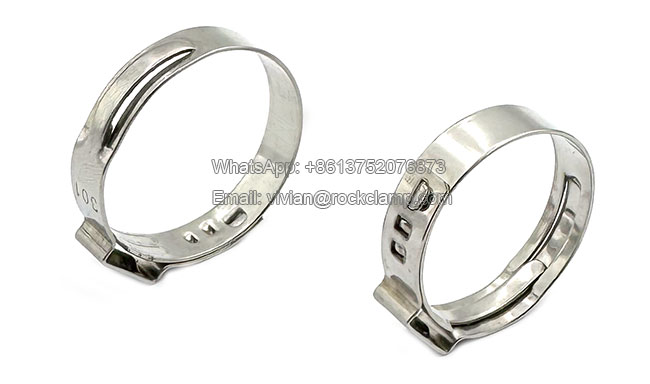

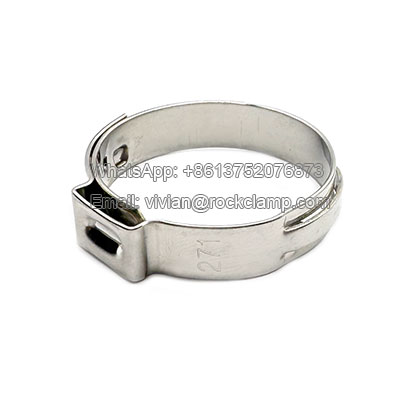

Precision Single Ear Stepless Hose Clamps

Our Stainless Steel Single Ear Hose Clamps are designed for high-vibration and high-pressure applications where a permanent, leak-proof seal is required. The unique "Stepless" design ensures uniform 360° compression around the entire circumference of the hose, eliminating the gaps and pressure points common in traditional worm gear clamps.

They are high-performance pipe fasteners designed for sealing connections between rigid/flexible hoses in automotive, marine, medical equipment, and industrial piping systems. Featuring a seamless "gap-free" inner ring design, they provide 360° uniform compression to ensure leak-proof adaptability to diverse tubing materials. This innovative structure addresses the uneven pressure distribution of conventional clamps, offering enhanced connection reliability and long-term stability.

This product line comprises of standard series, heavy duty series, and PEX series, catering to diverse tubing requirements:

 - Standard type: For general rigid/flexible hose connections

 - Heavy duty type: Engineered for low-elasticity aluminum-plastic composite pipes

 - PEX series: Optimized for cross-linked polyethylene (PEX) piping systems

Each variant ensures optimal sealing performance tailored to specific pipe characteristics.



Material:

W4 - All parts stainless steel 304

Stainless steel single ear hose clamps are manufactured from Grade 304 stainless steel, combining outstanding ductility with superior corrosion resistance to ensure long-term structural integrity and sealing reliability even in demanding operating conditions.



Features:

Seamless Compression Technology: Gap-free inner ring achieves 360° uniform radial compression, eliminating localized stress points common in conventional clamps

Precision Narrow-Band Design:

 - Patented profile concentrates sealing pressure

 - Chamfered edges reduce installation damage

 - Combines aerospace-grade lightweight

Ultra-Lightweight Construction: Material science optimization yields 40% weight reduction versus industry standards

Positive Locking System:

 - Progressive torque transmission boosts clamping efficiency

 - Visual engagement indicator provides instant installation confirmation



Dimension chart:

Standard Series
Dimension range	Band thick * width
6.5 - 11.8 mm	0.5 x 5.0 mm
11.9 - 120.5 mm	0.6 x 7.0 mm
21.0 - 120.5 mm	0.8 x 9.0 mm
Heavy duty Series
Dimension range	Band thick * width
62.0 - 120.5 mm	1.0 x 10.0 mm
PEX Series
Dimension range	Band thick * width
13.3mm	0.6 x 7.0mm
17.5mm	0.8 x 7.0mm
23.3mm	0.8 x 9.0mm
29.6mm	1.0 x 10.0mm

Advantages:

• 360° Stepless Design: The inner band circumference has no steps or gaps, providing a continuous, uniform seal on soft and hard hoses.

• Tamper-Proof Fastening: Once crimped with a specialized tool, the clamp provides a permanent connection that cannot be loosened or adjusted, ensuring system integrity.

• Premium SS304/316 Material: Manufactured from high-tensile stainless steel for excellent corrosion resistance in chemical and marine environments.

• Specially Formed Edges: Smooth, rounded band edges prevent damage to sensitive hoses and tubes.

• Compact & Lightweight: Low-profile design makes them perfect for tight spaces in engine bays or medical equipment.



Installation Tools:

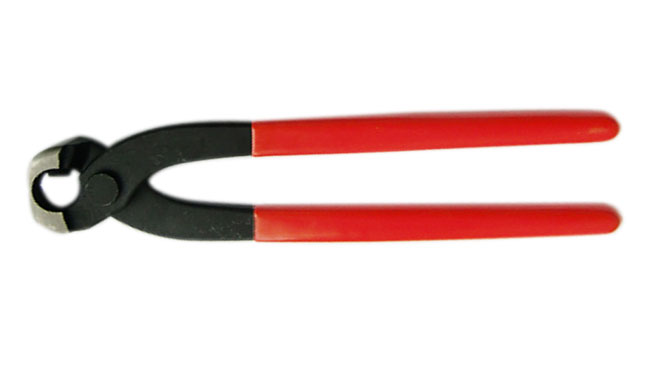

Hand-operated Pliers

 - Ideal for small-scale repairs or low-volume applications

 - Provides flexibility in field maintenance scenarios

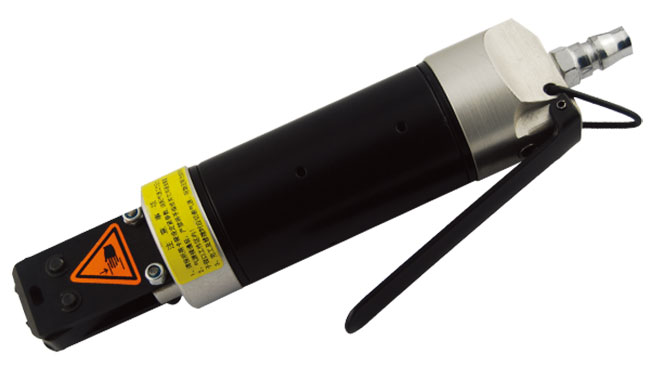

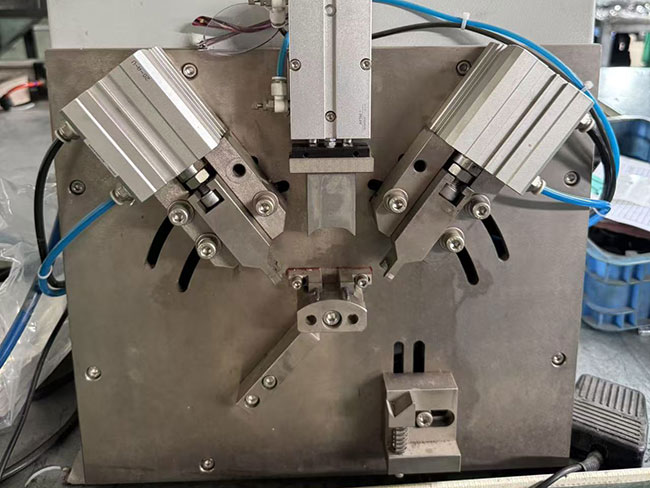

Pneumatic Clamp Tools  (Recommended)

 - Consistent Tightening：Precision-controlled clamping force ensures uniform installation for every clamp.

- Enhanced Efficiency：Faster than manual installation, optimizing assembly line throughput.

- Quality Assurance：Improves long-term sealing performance—ideal for automotive, medical, and other high-precision industries.



Application:

Stainless steel single ear hose clamps are engineered for permanent piping connections in critical environments:

 - Transportation: Automotive fuel/coolant lines, railway brake systems, marine hydraulic circuits

 - Water Infrastructure: Municipal supply networks, pressurization units

 - Beverage Industry: Brewery transfer lines, espresso machines, beverage dispensing systems

 - Medical Technology: Hemodialysis equipment, peristaltic pump tubing



Package: small bag/box + outer carton + pallet

FAQ

Q1: Why is the "Stepless" design important for ear clamps?

A: Traditional ear clamps sometimes have a small step where the band overlaps, which can cause a leak path. Our Stepless design features an inner tongue that slides into a groove, ensuring the hose is compressed evenly all the way around without any gaps.

Q2: Can single ear clamps be reused?

A: No. Single ear clamps are designed for permanent installation. To remove them, the ear must be cut or pried open, which deforms the clamp. This ensures the connection is tamper-proof and secure.



Q3: Do I need a special tool to install these clamps?

A: Yes. These clamps require Ear Clamp Pincers (either manual, pneumatic, or hydraulic) to crimp the "ear" closed. Proper crimping is essential to achieve the rated sealing pressure.
