Band width: 25mm/30mm
Band thick: 1.2/1.5mm
Material: W1
Description:

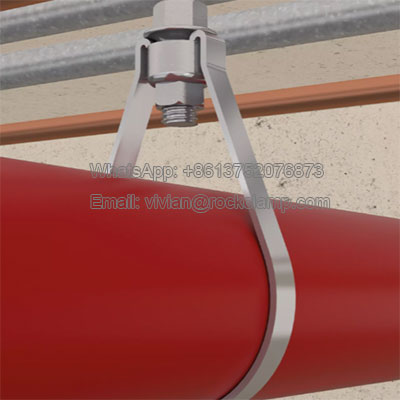

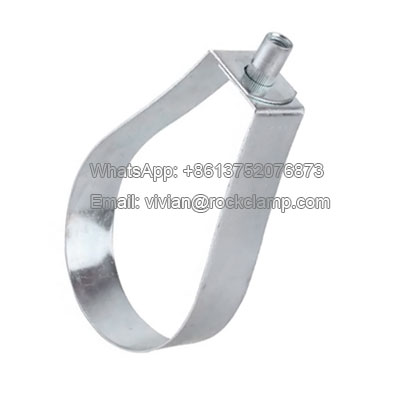

The sprinkler line clamps are a fundamental component in pipeline support systems, featuring a pear-shaped lifting design for optimal load distribution, a streamlined structure for easy installation, and an integrated rotating nut mechanism that enables 360° pipeline rotation adjustment during alignment and maintenance operations.
Material:
W1 - Carbon steel with zinc plate
Features:
The sprinkler line clamps are specialized fire protection pipe clamp designed as a critical installation component for securely fastening sprinkler system piping. Its engineered features include:
Pear-shaped suspension eye - Provides optimized load-bearing capacity while allowing vertical adjustability during installation
Integrated swivel nut design - Enables 360° rotational adjustment of pipes for perfect alignment
Heavy-duty galvanized construction - Offers corrosion resistance for fire protection systems
Vibration-dampening grip - Maintains seismic stability while preventing pipe abrasion.
Dimension Chart:
| Inch Size |
Metric Size |
Width* Thick |
| 1/4" | 11-15 | 25*1.2 |
| 3/8" | 16-20 | 25*1.2 |
| 1/2" | 20-24 | 25*1.2 |
| 3/4" | 25-30 | 25*1.2 |
| 1" | 32-38 | 25*1.2 |
| 1-1/4" | 39-46 | 25*1.2 |
| 1-1/2" | 48-53 | 25*1.2 |
| 2" | 59-66 | 25*1.2 |
| 2-1/2" | 74-80 | 30*1.5 |
| 3" | 87-94 | 30*1.5 |
| 4" | 110-116 | 30*1.5 |
| 5" | 135-143 | 30*1.5 |
| 6" | 162-170 | 30*1.5 |
| 7" | 207-219 | 30*1.5 |
Application:
It is a fire-safety-critical pipe support designed for secure, adjustable, and code-compliant installation of sprinkler system piping. Its specialized design ensures structural stability, seismic resistance, and long-term reliability in fire protection systems.
Wet & Dry Sprinkler Systems – Secures branch lines and cross mains.
High-Rise Buildings – Provides seismic bracing to prevent pipe displacement during earthquakes.
Warehouses & Large Facilities
Chilled Water & Condensate Drainage Lines – Prevents sagging and vibration-induced stress.
Steam & Hot Water Pipes – Adjustable for thermal expansion/contraction.
Package: small bag/box + outer carton + pallet
