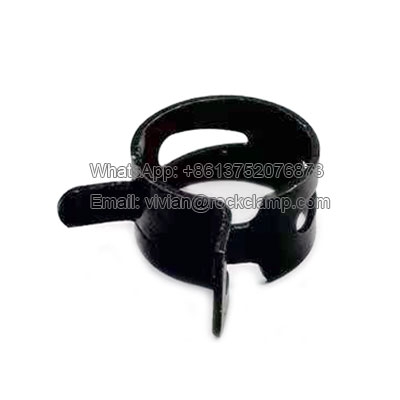

Spring hose clamp

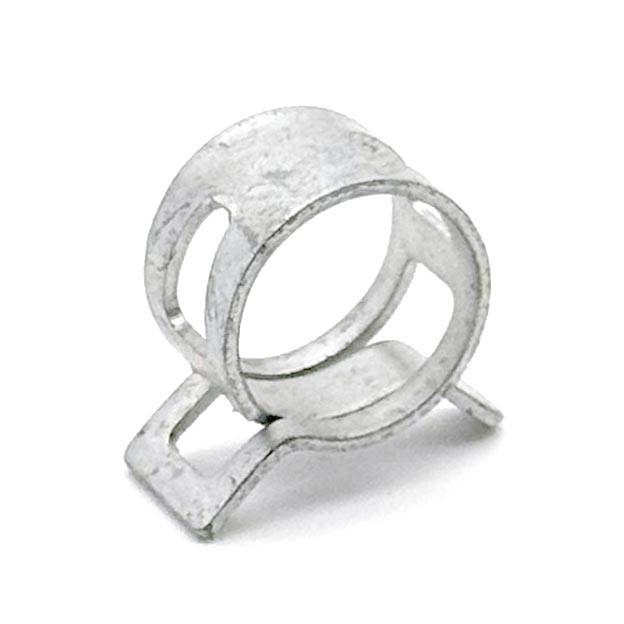

Spring hose clamp is a metal ring clamp used to fasten hoses, pipes or other cylindrical objects. It automatically adjusts the fastening force through the built-in spring tension and is widely used in the fields of automobiles, machinery, and home appliances. It is made of material 65Mn, and is in the shape of an open ring with serrations or grooves on the inside to enhance friction. It can be installed without tools and relies on the elasticity of the spring to automatically compensate for the contraction or expansion of the hose.
Material:

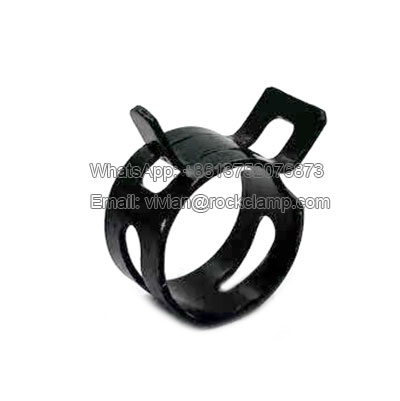

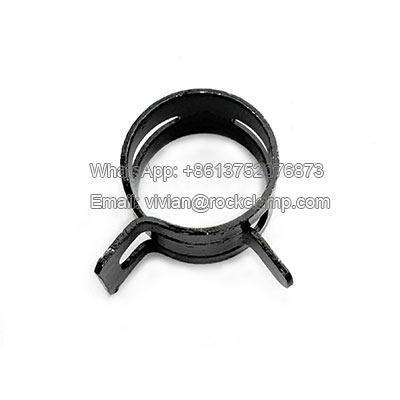

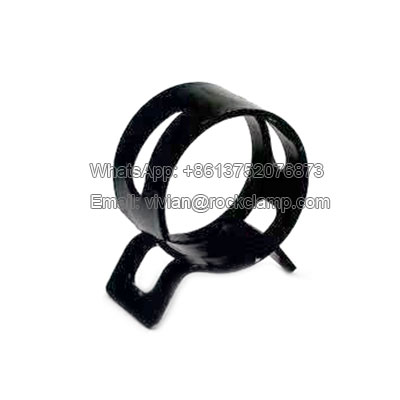

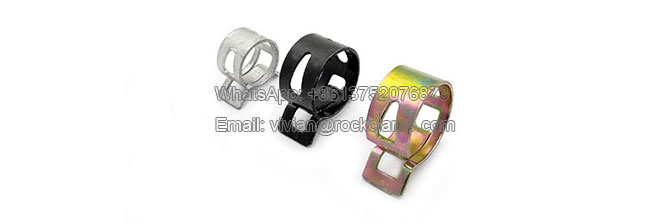

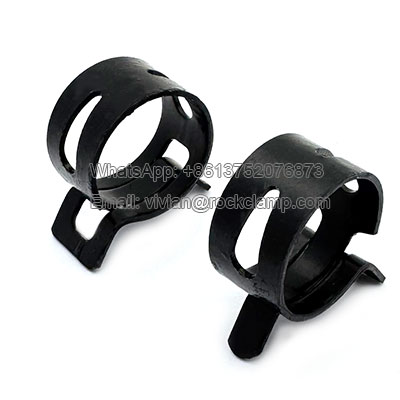

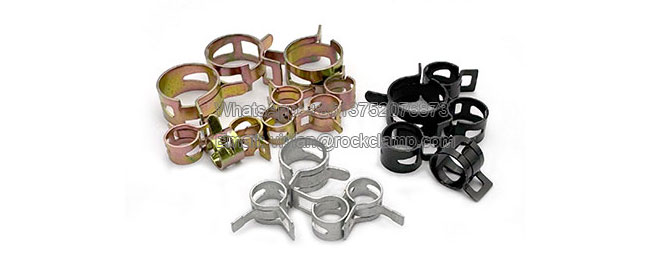

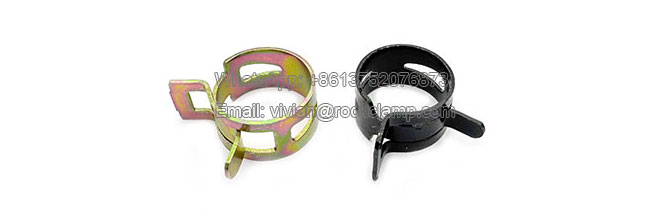

65Mn, surface Black, Zinc plated, Dacromet
Specification:
| Delivery Size mm |
Band Thick mm |
Band Width mm |
Clamping Size mm |
Max/Open Size mm |
| 7.0 | 0.6 | 6.0 | 7.6 | 8.3 |
| 8.0 | 8.6 | 9.5 | ||
| 8.5 | 8.0 | 9.2 | 10.2 | |
| 9.0 | 9.7 | 10.7 | ||
| 9.5 | 0.8 | 10.3 | 11.3 | |
| 10.0 | 10.8 | 11.9 | ||
| 10.5 | 11.4 | 12.5 | ||
| 11.0 | 11.9 | 13.1 | ||
| 11.5 | 12.4 | 13.7 | ||
| 12.0 | 13 | 14.3 | ||
| 12.5 | 13.5 | 14.9 | ||
| 13.0 | 14 | 15.6 | ||
| 13.5 | 14.6 | 16.1 | ||
| 14.0 | 10.0 | 15.1 | 16.7 | |
| 14.5 | 15.7 | 17.3 | ||
| 15.0 | 1.0 | 16.2 | 17.9 | |
| 15.5 | 12.0 | 16.7 | 18.4 | |
| 16.0 | 17.3 | 19.1 | ||
| 16.5 | 17.9 | 19.7 | ||
| 17.0 | 18.4 | 20.2 | ||
| 17.5 | 18.9 | 20.9 | ||
| 18.0 | 19.4 | 21.4 | ||
| 18.5 | 20 | 22.1 | ||
| 19.0 | 20.5 | 22.6 | ||
| 19.5 | 21.1 | 23.3 | ||
| 20.0 | 21.6 | 23.8 | ||
| 20.5 | 22.2 | 24.4 | ||
| 21.0 | 22.7 | 25 | ||
| 23.0 | 1.2 | 24.8 | 27.4 | |
| 24.0 | 25.9 | 28.5 | ||
| 25.0 | 27 | 29.8 | ||
| 26 | 29 | 31.5 | ||
| 27 | 29.5 | 32.5 |
