Description:

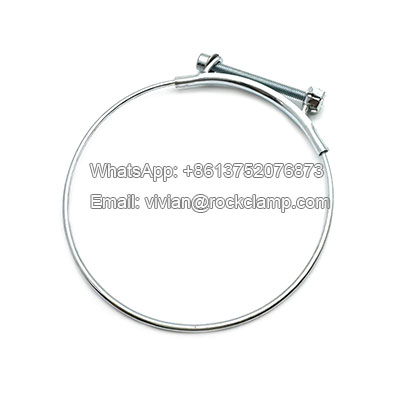

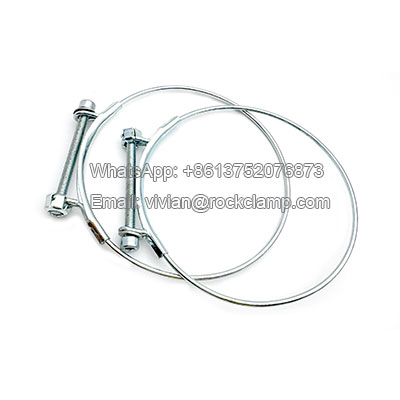

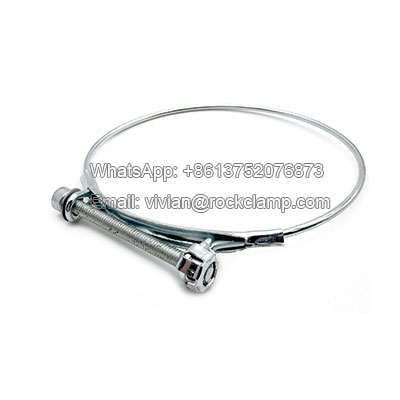

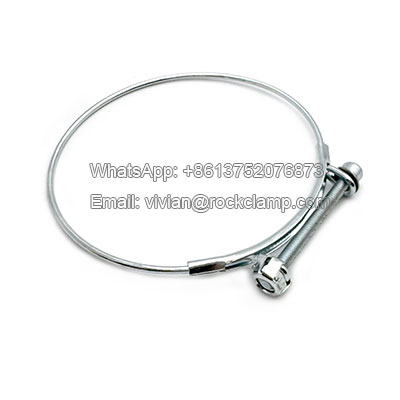

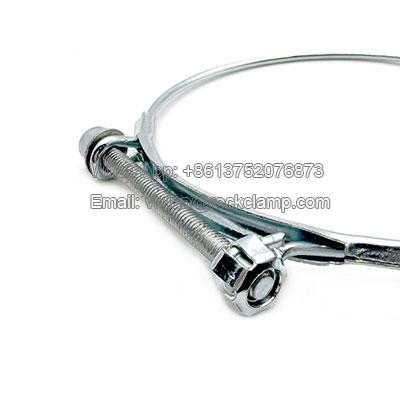

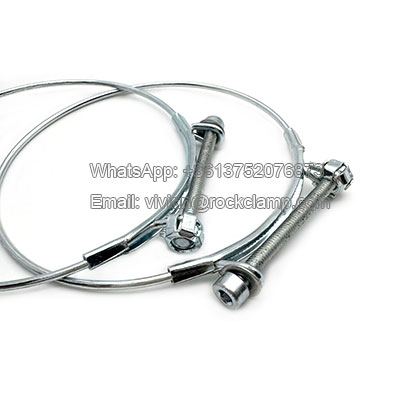

The single wire clamp is a simple yet effective fastening solution designed for smooth-surfaced hoses and ducting. Its single-loop wire construction allows it to sit neatly around the outer diameter of the tubing before being securely tightened via a screw mechanism.
Material:
W1 - Wire 65Mn steel with zinc coating
Features:
- Smooth & Secure Fit – The single-wire design conforms evenly to smooth outer surfaces without damaging the material.
- Screw-Tightened – Adjustable tension via a screw system for firm, reliable clamping.
- Lightweight & Simple – Ideal for low-to-medium pressure applications where bulky clamps are unnecessary.
- Non-Destructive – Gentle on hoses/ducting, preventing crimping or distortion.
Dimension Chart:
| Single wire clamp Available size |
||
| Part No | Dimension range |
Wire length |
| SW90 | 75-90 | 236 |
| SW100 | 95-110 | 299 |
| SW135 | 120-135 | 377 |
| SW160 | 145-160 | 456 |
| SW170 | 155-170 | 487 |
| SW210 | 195-210 | 613 |
| SW260 | 245-260 | 770 |
| SW325 | 310-325 | 974 |
| SW365 | 350-365 | 1100 |
| SW410 | 395-410 | 1241 |
Application:
Single wire clamp is versatile, lightweight fastening solutions ideal for securing smooth-surfaced hoses and ducting in low-to-medium pressure systems. Their simple yet effective design makes them suitable for various industrial, automotive, and HVAC applications.
- HVAC & Ventilation Systems: Securing flexible air ducts, Connecting ventilation tubing, Fastening exhaust ducting
- Automotive & Machinery: Coolant hose connections, Low-pressure fuel lines, Air intake system components
- Industrial & Manufacturing. Pneumatic tool air lines, Light-duty hydraulic connections, Process piping in food/beverage industries
Package:
Small bag/box + outer carton + pallet
