5mm Band Width Micro Single Ear Clips | 0.5mm Ultra-Slim Profile

The Perfect Solution for Limited Space: 5mm Micro Single Ear Clips

When standard 7mm or 9mm clamps are too bulky for your precision application, our 5mm Narrow Band Series provides the ultimate solution. Specifically engineered for small-bore hoses and sensitive tubing, these clips feature a 0.5mm ultra-slim band thickness, allowing for maximum flexibility and a low-profile finish without sacrificing sealing integrity.

Single ear hose clips are the type of hose clamp designed for a secure, leak-proof connection without the gaps or steps found in traditional worm gear clamps. It features a smooth, continuous band tightened by a single ear (tab) for even pressure distribution.

Material:

W4 - All parts stainless steel 304

Single ear hose clips Features:

- 360° Stepless Design. Smooth, continuous inner circumference with no steps or gaps for uniform sealing performance.

- Optimized Sealing Performance. Narrow band design provides concentrated compression force for superior sealing effectiveness.

- Damage-Prevention Construction. Specially formed strip edges minimize risk of damage to clamped components during installation and use.

- Premium Material Quality. Manufactured from high-grade 304 stainless steel for excellent corrosion resistance and durability.

Why the 5mm / 0.5mm Specification Matters:

The 5mm band width is 30% narrower than standard clips, making it ideal for high-density hose clusters in automotive sensors and medical devices.

• • Concentrated Radial Force: A narrower band applies more concentrated pressure, ensuring a leak-proof seal on small-diameter barbs (3mm to 10mm).

  • Lightweight & Low Profile: The 0.5mm thickness reduces the overall weight and outer diameter of the assembly, perfect for lightweight drone components or portable electronics.

  • Burr-Free Precision: Our micro-series clips undergo extra polishing to ensure the thin 0.5mm edges never cut into soft silicone or TPU tubing.

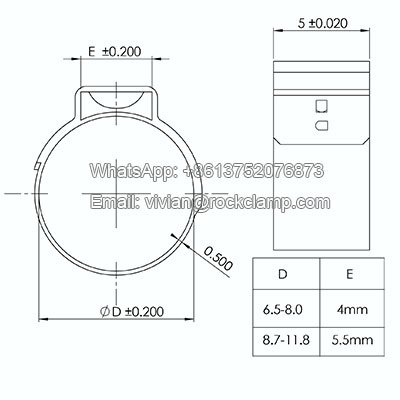

Drawing:

Dimension chart:

Application:

 - Coolant & Radiator Hoses – Secure connections in engine cooling systems

 - Fuel Lines – Vibration-resistant sealing for gasoline/diesel systems

 - Air Intake Ducts – Maintains seal under pulsating airflow

 - Hydraulic/Pneumatic Lines – Reliable sealing for high-pressure fluids

 - Beverage Transfer Lines – FDA-compliant material for liquid food

FAQ

Q1: What are the main advantages of a 5mm band width? A: The 5mm width allows the clip to be used in extremely cramped spaces where a standard 7mm clip simply won't fit. It's the go-to choice for sensor lines, laboratory equipment, and small-scale fluid transfer systems.

Q2: Does the 0.5mm thickness affect the clamping strength? A: Not for its intended use. While thinner, the high-tensile SS304/SS316 material provides more than enough radial force for the small-diameter hoses it is designed for. The thinner profile actually allows the clip to conform better to the hose shape.

Q3: Can these clips be used on medical-grade silicone tubing? A: Yes. Because of our precision de-burring process, the 0.5mm edges are smooth and rounded, making them safe for soft, sensitive materials like medical silicone, Tygon, and TPU.
