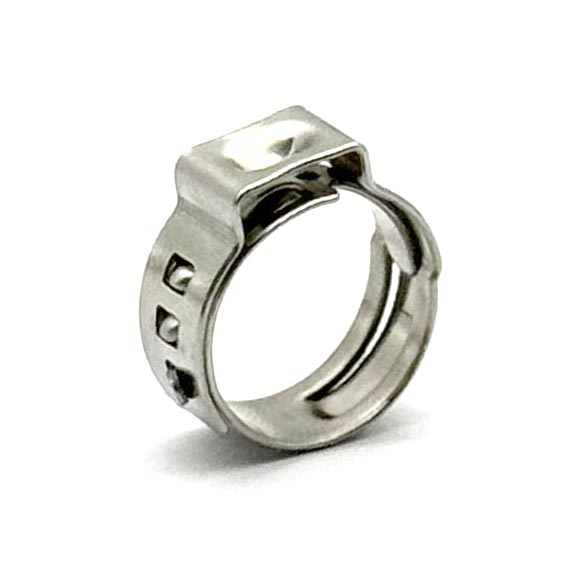

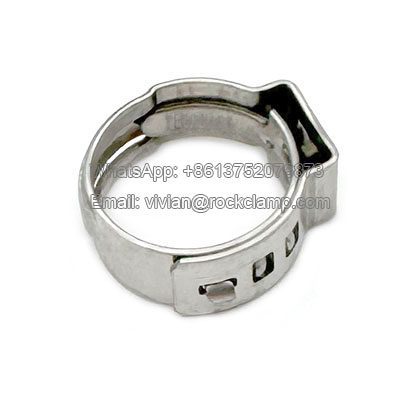

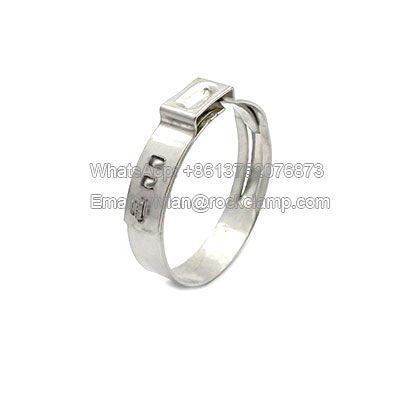

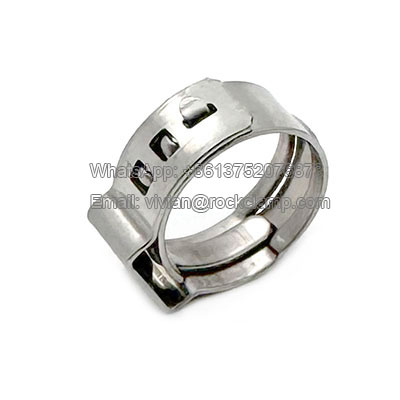

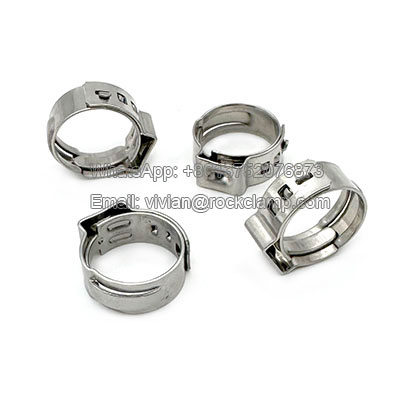

Single ear hose clamp

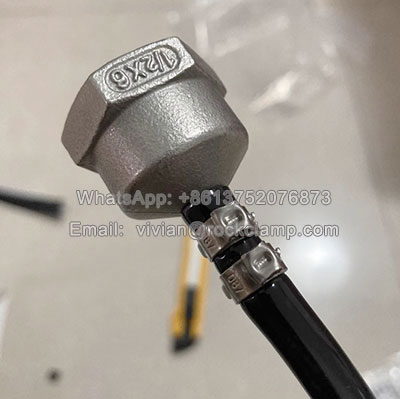

Single ear hose clamp is a pipe fixing fastener, usually used to fasten the connection between soft pipes (such as rubber pipes, plastic pipes) and hard pipes (such as metal pipes, PVC pipes).

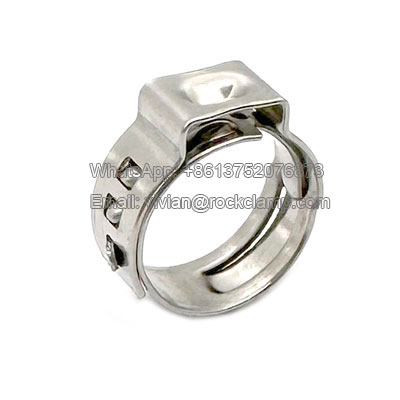

360° StepLess design gives uniform compression and surface pressure. The dimple in Clamp Ear increases clamping force, and the burr-free strip edges reduce material abrasion while installation.
Material:
W4 - All parts SS304.
Specification:
| 505R SERIES | |||
| Item | Dimension Range | Band Width | Band Thickness |
| 006.5-505R | 5.5-6.5 | 5 | 0.5 |
| 007.0-505R | 5.8-7 | 5 | 0.5 |
| 008.0-505R | 6.8-8 | 5 | 0.5 |
| 008.7-505R | 7-8.7 | 5 | 0.5 |
| 009.0-505R | 7.3-9 | 5 | 0.5 |
| 009.5-505R | 7.8-9.5 | 5 | 0.5 |
| 010.0-505R | 8.3-10 | 5 | 0.5 |
| 010.5-505R | 8.8-10.5 | 5 | 0.5 |
| 010.9-505R | 9.2-10.9 | 5 | 0.5 |
| 011.3-505R | 9.6-11.3 | 5 | 0.5 |
| 011.8-505R | 10.1-11.8 | 5 | 0.5 |

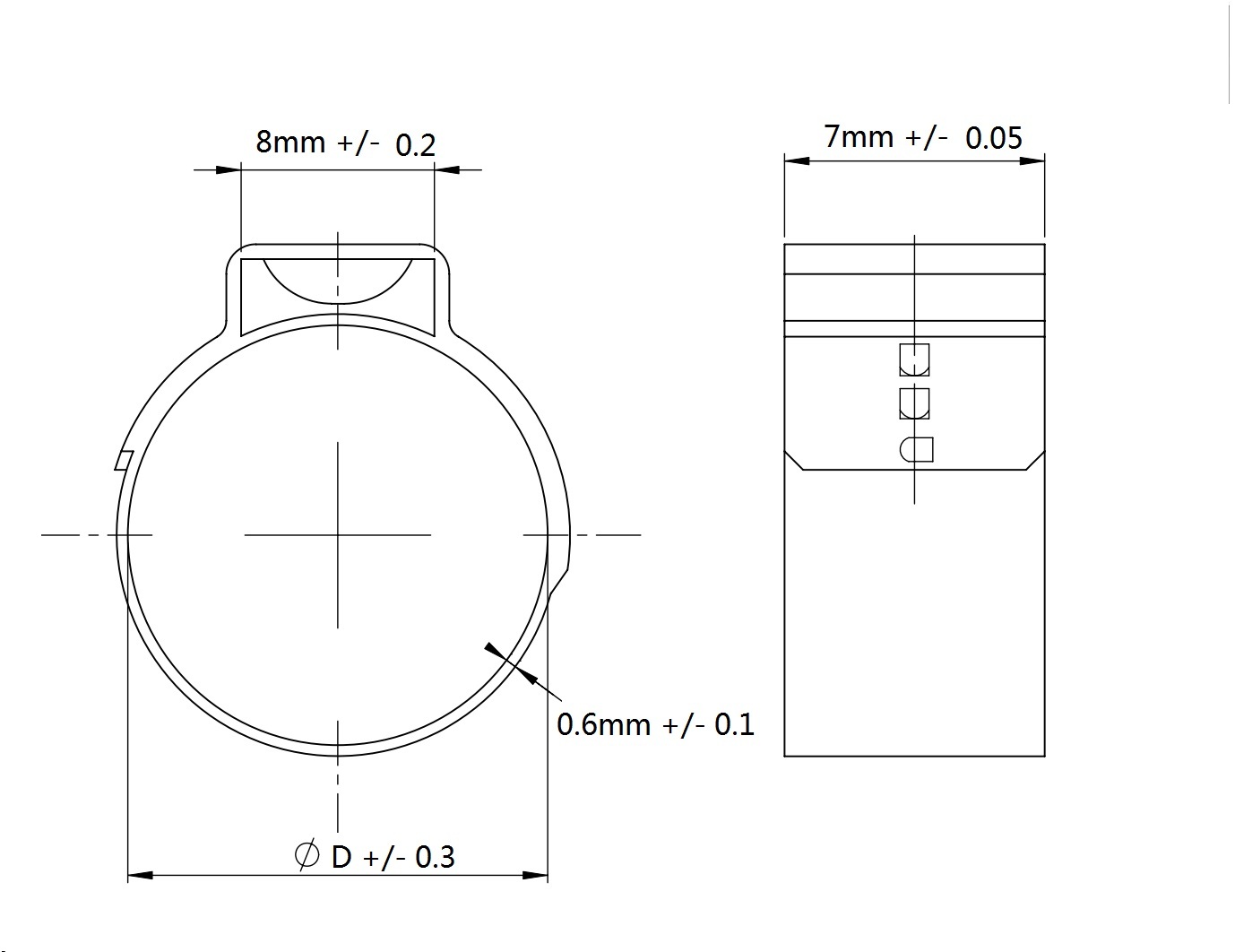

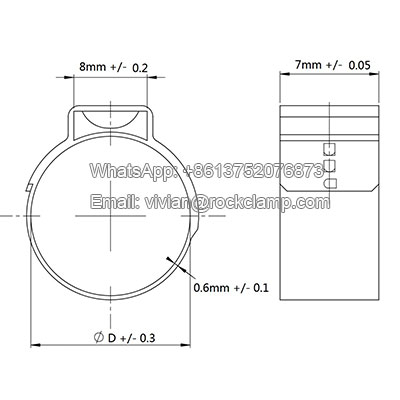

| 706R SERIES | |||
| Item | Dimension Range | Band Width | Band Thickness |
| 011.9-706R | 9.4-11.9 | 7 | 0.6 |
| 012.3-706R | 9.8-12.3 | 7 | 0.6 |
| 012.8-706R | 10.3-12.8 | 7 | 0.6 |
| 013.3-706R | 10.8-13.3 | 7 | 0.6 |
| 013.8-706R | 11.3-13.8 | 7 | 0.6 |
| 014.0-706R | 11.5-14 | 7 | 0.6 |
| 014.5-706R | 12-14.5 | 7 | 0.6 |
| 014.8-706R | 12.3-14.8 | 7 | 0.6 |
| 015.3-706R | 12.8-15.3 | 7 | 0.6 |
| 015.7-706R | 13.2-15.7 | 7 | 0.6 |
| 016.2-706R | 13.7-16.2 | 7 | 0.6 |
| 016.6-706R | 14.1-16.6 | 7 | 0.6 |
| 016.8-706R | 14.3-16.8 | 7 | 0.6 |
| 017.0-706R | 14.5-17 | 7 | 0.6 |
| 017.5-706R | 15-17.5 | 7 | 0.6 |
| 017.8-706R | 14.6-17.8 | 7 | 0.6 |
| 018.0-706R | 14.8-18 | 7 | 0.6 |
| 018.5-706R | 15.3-18.5 | 7 | 0.6 |
| 019.2-706R | 16-19.2 | 7 | 0.6 |
| 019.8-706R | 16.6-19.8 | 7 | 0.6 |
| 021.0-706R | 17.8-21 | 7 | 0.6 |
| 022.6-706R | 19.4-22.6 | 7 | 0.6 |
| 023.5-706R | 20.3-23.5 | 7 | 0.6 |
| 024.1-706R | 20.9-24.1 | 7 | 0.6 |
| 025.6-706R | 22.4-25.6 | 7 | 0.6 |
| 027.1-706R | 23.9-27.1 | 7 | 0.6 |
| 028.6-706R | 25.4-28.6 | 7 | 0.6 |
| 030.1-706R | 26.9-30.1 | 7 | 0.6 |
| 030.8-706R | 27.6-30.8 | 7 | 0.6 |
| 031.6-706R | 28.4-31.6 | 7 | 0.6 |
| 033.1-706R | 29.9-33.1 | 7 | 0.6 |
| 034.6-706R | 31.4-34.6 | 7 | 0.6 |
| 036.1-706R | 32.9-36.1 | 7 | 0.6 |
| 037.6-706R | 34.4-37.6 | 7 | 0.6 |
| 038.1-706R | 34.9-38.1 | 7 | 0.6 |
| 039.6-706R | 36.4-39.6 | 7 | 0.6 |
| 041.0-706R | 37.8-41 | 7 | 0.6 |
| 042.5-706R | 39.3-42.5 | 7 | 0.6 |
| 044.0-706R | 40.8-44 | 7 | 0.6 |
| 045.5-706R | 42.3-45.5 | 7 | 0.6 |
| 047.0-706R | 43.8-47 | 7 | 0.6 |
| 048.5-706R | 45.3-48.5 | 7 | 0.6 |
| 050.0-706R | 46.8-50 | 7 | 0.6 |
| 051.5-706R | 48.3-51.5 | 7 | 0.6 |
| 053.0-706R | 49.8-53 | 7 | 0.6 |
| 054.5-706R | 51.3-54.5 | 7 | 0.6 |
| 056.0-706R | 52.8-56 | 7 | 0.6 |
| 057.5-706R | 54.3-57.5 | 7 | 0.6 |
| 059.0-706R | 55.8-59 | 7 | 0.6 |
| 060.5-706R | 57.3-60.5 | 7 | 0.6 |
| 062.0-706R | 58.8-62 | 7 | 0.6 |
| 063.5-706R | 60.3-63.5 | 7 | 0.6 |
| 065.0-706R | 61.8-65 | 7 | 0.6 |
| 066.5-706R | 63.3-66.5 | 7 | 0.6 |
| 068.0-706R | 64.8-68 | 7 | 0.6 |
| 069.5-706R | 66.3-69.5 | 7 | 0.6 |
| 071.0-706R | 67.8-71 | 7 | 0.6 |
| 072.5-706R | 69.3-72.5 | 7 | 0.6 |
| 074.0-706R | 70.8-74 | 7 | 0.6 |
| 075.5-706R | 72.3-75.5 | 7 | 0.6 |
| 077.0-706R | 73.8-77 | 7 | 0.6 |
| 078.5-706R | 75.3-78.5 | 7 | 0.6 |
| 080.0-706R | 76.8-80 | 7 | 0.6 |
| 081.5-706R | 78.3-81.5 | 7 | 0.6 |
| 083.0-706R | 79.8-83 | 7 | 0.6 |
| 084.5-706R | 81.3-84.5 | 7 | 0.6 |
| 086.0-706R | 82.8-86 | 7 | 0.6 |
| 087.5-706R | 84.3-87.5 | 7 | 0.6 |
| 089.0-706R | 85.8-89 | 7 | 0.6 |
| 090.5-706R | 87.3-90.5 | 7 | 0.6 |
| 092.0-706R | 88.8-92 | 7 | 0.6 |
| 093.5-706R | 90.3-93.5 | 7 | 0.6 |
| 095.0-706R | 91.8-95 | 7 | 0.6 |
| 096.5-706R | 93.3-96.5 | 7 | 0.6 |
| 098.0-706R | 94.8-98 | 7 | 0.6 |
| 099.5-706R | 96.3-99.5 | 7 | 0.6 |
| 101.0-706R | 97.8-101 | 7 | 0.6 |
| 102.5-706R | 99.3-102.5 | 7 | 0.6 |
| 104.0-706R | 100.8-104 | 7 | 0.6 |
| 105.5-706R | 102.3-105.5 | 7 | 0.6 |
| 107.0-706R | 103.8-107 | 7 | 0.6 |
| 108.5-706R | 105.3-108.5 | 7 | 0.6 |
| 110.0-706R | 106.8-110 | 7 | 0.6 |
| 111.5-706R | 108.3-111.5 | 7 | 0.6 |
| 113.0-706R | 109.8-113 | 7 | 0.6 |
| 114.5-706R | 111.3-114.5 | 7 | 0.6 |
| 116.0-706R | 112.8-116 | 7 | 0.6 |
| 117.5-706R | 114.3-117.5 | 7 | 0.6 |
| 119.0-706R | 115.8-119 | 7 | 0.6 |
| 120.5-706R | 117.3-120.5 | 7 | 0.6 |
