Band width: 9mm
Band thick: 0.6mm
Material: W4
Description:

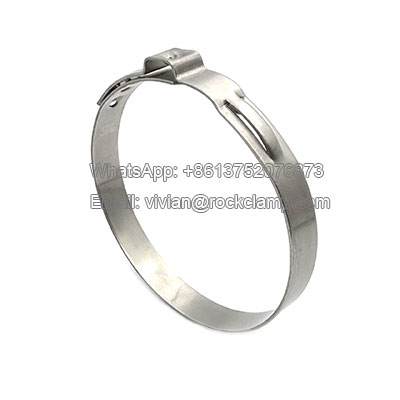

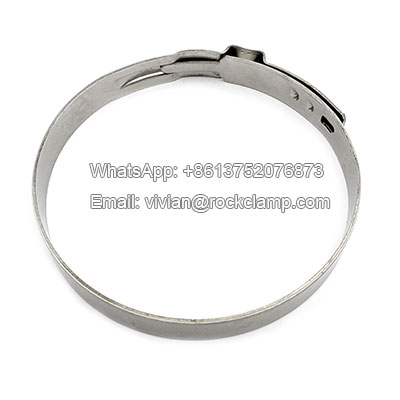

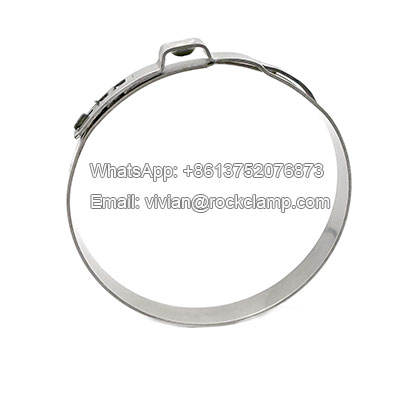

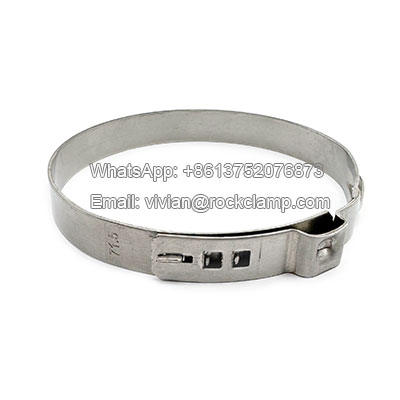

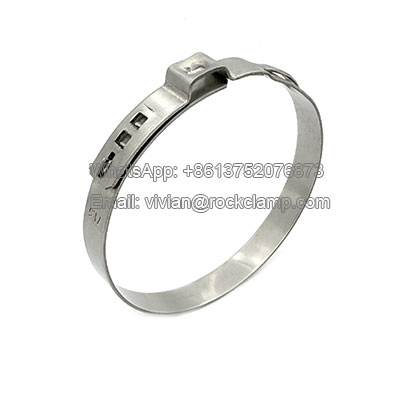

906R Series single ear clamp is a compact and adjustable hose or pipe clamp featuring a single protruding ear for tightening, designed to provide continuous, step-free tension without predefined notches or increments. Unlike worm gear or two-ear clamps, it allows for smooth, precise tightening, ensuring even pressure distribution and a secure, leak-resistant seal. Commonly made of stainless steel, it is ideal for automotive, plumbing, and industrial applications where vibration resistance and space efficiency are crucial. Its simple yet robust design minimizes hose damage while offering reliable fastening in tight spaces.
Material:
W4 - All parts stainless steel 304
Features:
Compared to the 706 series, 906R series band width 9mm, the reinforced 9mm design provides enhanced strength and durability.
It features easy single ear installation. Just simply squeeze the ear with pliers for quick and tool-free fastening. And the full 360° stepless design ensures uniform sealing pressure around the entire circumference, preventing leaks.
Dimension chart:
| Single ear clamp - 906R SERIES Band width 9mm, thick 0.6mm |
||||
| Item | Dimension Range | Item | Dimension Range | |
| 030.1-906R | 26.9-30.1 | 056.0-906R | 52.8-56.0 | |
| 030.8-906R | 27.6-30.8 | 057.5-906R | 54.3-57.5 | |
| 031.6-906R | 28.4-31.6 | 059.0-906R | 55.8-59.0 | |
| 033.1-906R | 29.9-33.1 | 060.5-906R | 57.3-60.5 | |
| 034.6-906R | 31.4-34.6 | 062.0-906R | 58.8-62.0 | |
| 036.1-906R | 32.9-36.1 | 063.5-906R | 60.3-63.5 | |
| 037.6-906R | 34.4-37.6 | 065.0-906R | 61.8-65.0 | |
| 038.1-906R | 34.9-38.1 | 066.5-906R | 63.3-66.5 | |
| 039.6-906R | 36.4-39.6 | 068.0-906R | 64.8-68.0 | |
| 041.0-906R | 37.8-41.0 | 069.5-906R | 66.3-69.5 | |
| 042.5-906R | 39.3-42.5 | 071.0-906R | 67.8-71.0 | |
| 044.0-906R | 40.8-44.0 | 072.5-906R | 69.3-72.5 | |
| 045.5-906R | 42.3-45.5 | 074.0-906R | 70.8-74.0 | |
| 047.0-906R | 43.8-47.0 | 075.5-906R | 72.3-75.5 | |
| 048.5-906R | 45.3-48.5 | 077.0-906R | 73.8-77.0 | |
| 050.0-906R | 46.8-50.0 | 078.5-906R | 75.3-78.5 | |
| 051.5-906R | 48.3-51.5 | 080.0-906R | 76.8-80.0 | |
| 053.0-906R | 49.8-53.0 | ... | ... | |
| 054.5-906R | 51.3-54.5 | 120.5-906R | 117.3-120.5 | |
Application:
The 906 Series single ear stepless clamp is designed for robust, leak-proof fastening in applications requiring high reliability and vibration resistance. Its 9mm reinforced band width makes it ideal for:
-Turbocharger hoses, intercooler pipes, and coolant lines.
-Exhaust systems, fuel lines, and air intake connections.
- High-pressure hydraulic hoses and pneumatic tubing.
- Pump connections, compressor systems, and fluid transfer lines.
- Tightening hydraulic hoses in tractors and excavators.
- Dust-proof sealing for air and fluid conduits.
Package:
Small bag/box + outer carton + pallet
