Band width: 12.7mmmm (0.75”)
Band thick: 0.6mm
Material: W4 304
Suggested installation torque: 34 in-lbs (4 Nm)
Description:

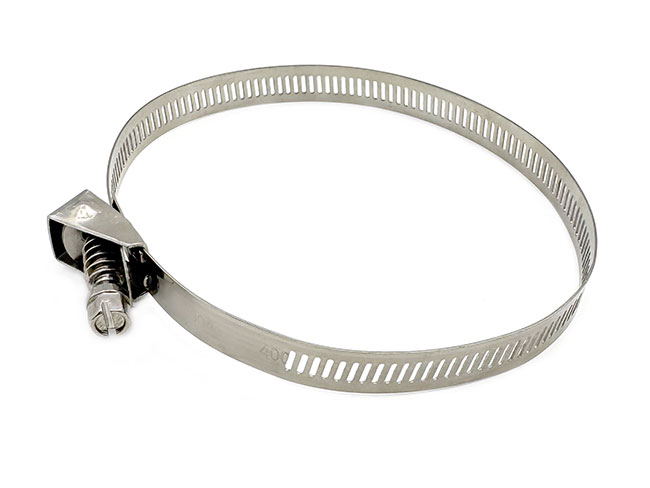

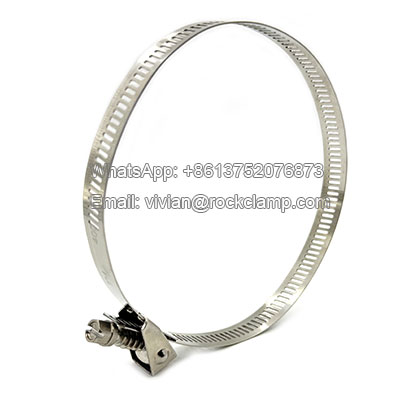

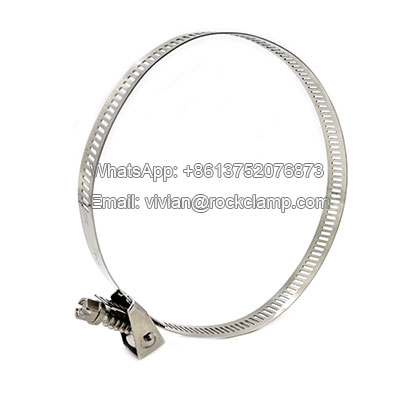

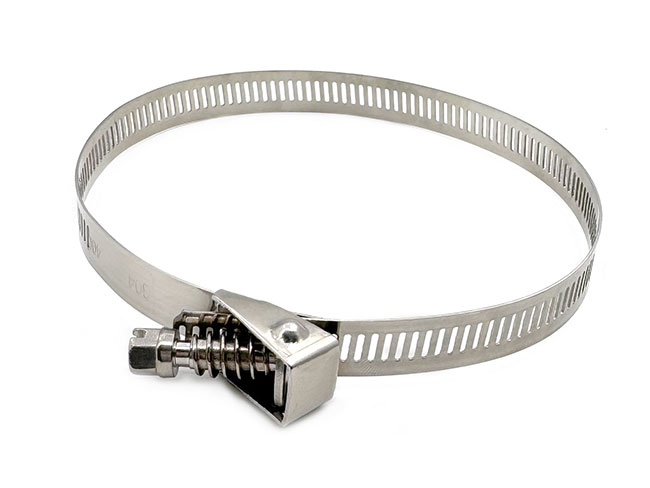

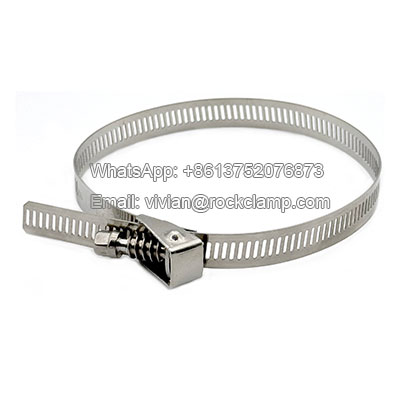

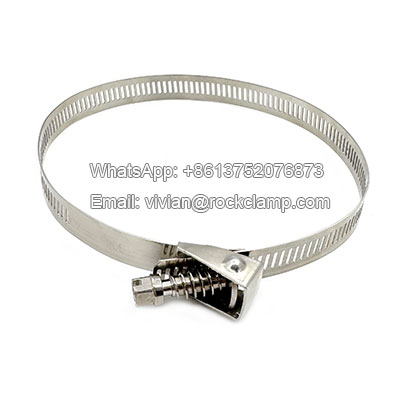

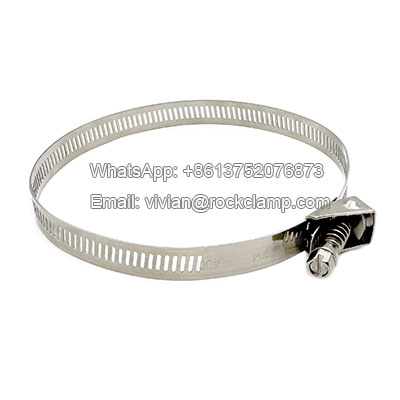

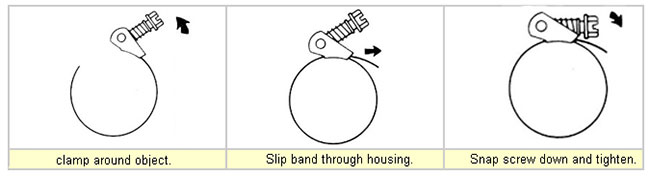

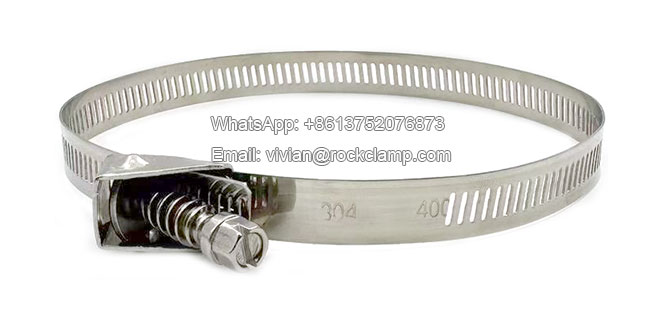

The American type quick release hose clamp, also know as quick release worm gear hose clamp, features a split design where the stainless steel band serves as the primary load-bearing component, while the worm gear mechanism ensures secure tightening and adjustment. An integrated spacer facilitates quick installation and removal, making it ideal for applications requiring frequent maintenance or rapid assembly. This design combines durability, ease of use, and reliable clamping force for efficient performance in automotive, industrial, and hydraulic systems.
Material:
W4 - Band, hosing and screw SS304, washer SS410
Features:
Rapid Installation & Removal – Enables swift tightening and loosening, significantly improving work efficiency while maintaining secure fastening.
Optimized Torque & Superior Sealing – Requires less tightening torque than traditional hose clamps while delivering high tensile strength and 360° leak-proof sealing.
Exceptional Tensile Resistance – Engineered for high load-bearing capacity with an excellent breakage resistance index.
Customizable & Versatile – Available in multiple sizes with adjustable band lengths to meet specific client requirements, ensuring compatibility across diverse applications.

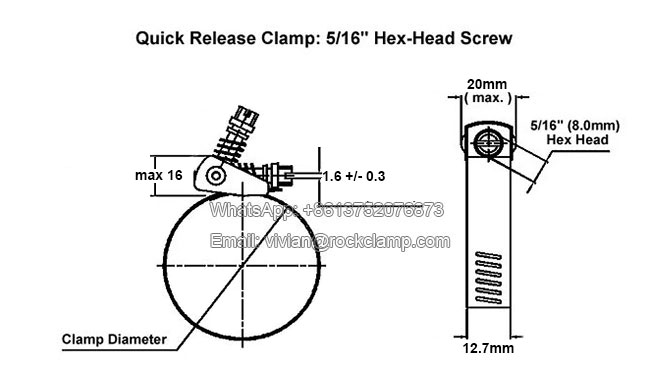

Drawing:
Dimension chart:
| Quick release worm gear hose clamp | ||
| SAE Size | Dimension | |
| mm | in inch | |
| 12 | 13-32 | 1/2"-1 1/4" |
| 20 | 19-44 | 3/4"- 1 3/4" |
| 24 | 26-51 | 3/4"- 2" |
| 28 | 26-57 | 1"- 2 1/4" |
| 36 | 26-70 | 1"- 2 3/4" |
| 48 | 38-89 | 1"- 3 1/2" |
| 56 | 25-101 | 1" - 4" |
| 72 | 51-127 | 2" - 5" |
| 88 | 51-152 | 2" - 6" |
| 104 | 44-178 | 2" - 7" |
| 116 | 44-197 | 1 3/4" -7 3/4" |
| 128 | 44-217 | 4 1/4" -8 1/2" |
| 136 | 44-228 | 1 3/4" - 9" |
| 152 | 51-154 | 2" - 10" |
| 188 | 52-312 | 2" - 12 1/4" |
Application:
Universal Pipe Adaptability - The adjustable steel band design accommodates varying pipe diameters, making it ideal for rapid sealing applications in automotive manufacturing, mechanical equipment, and petrochemical pipelines.
High-Performance Sealing Solution - With superior tensile strength and 360° sealing capability, the quick release worm gear hose clamp is particularly effective for ductwork and dust collection systems requiring frequent maintenance access.
Efficient System Conversion - Enables quick connection and sealing of air ducts and particulate channels during equipment changeovers, significantly improving operational efficiency through fast tightening and release.
Package: small bag/box + outer carton + pallet
