Germany type quick release duct clamp

Heavy-Duty Quick Release Duct & Ventilation Clamps

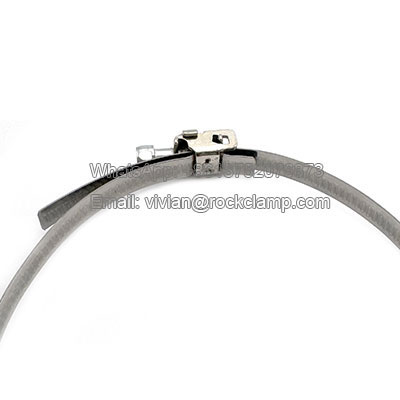

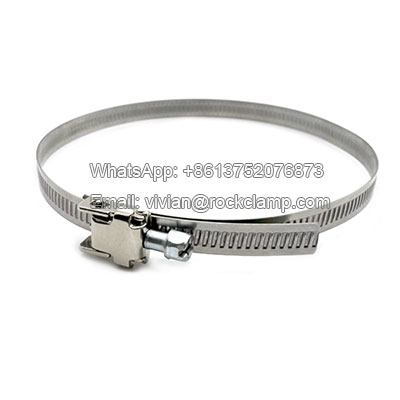

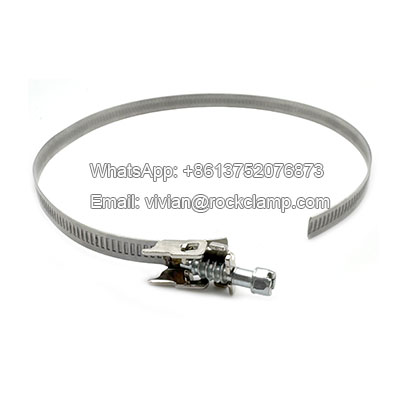

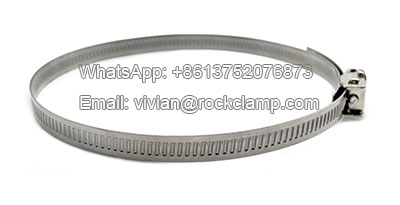

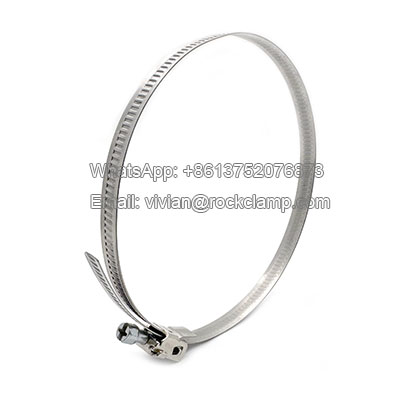

Our Quick Release Duct Clamps are the ideal solution for large-diameter piping and ventilation systems that require frequent maintenance or rapid assembly. Featuring a unique toggle-action latch or a swivel-screw mechanism, these clamps allow the band to open completely, enabling them to be fitted around existing ductwork without disconnecting the pipes.

The German type quick release hose clamp is also known as quick release duct clamp. It is a high-efficiency fastening solution specifically designed for industrial piping systems. Its unique locking screw design enables rapid installation and removal, making it particularly suitable for enclosed systems or applications requiring frequent maintenance.

Material:

W2 - Band and hosing SS430/304, screw carbon steel with zinc/nickel plated

W4 - Band, hosing and screw SS430/304

Features:

As an industry benchmark product in the piping system sector, this highly flexible worm-drive clamp effortlessly adapts to various complex pipe bundles, while its extensive specification range meets diverse diameter requirements, making it an indispensable all-purpose tool for maintenance departments. The premium stainless steel construction ensures stable performance even under harsh conditions involving high pressure and vibration, while the evenly distributed clamping force effectively prevents pipe damage, significantly enhancing system reliability and maintenance efficiency.

• Instant Locking Mechanism: The quick-release design allows for tool-free or rapid-screw closing, saving up to 75% of installation time compared to standard worm gear clamps.

• Large Diameter Specialized: Engineered specifically for oversized ducts, ranging from 2 inches to over 20 inches (50mm to 500mm+).

• High-Strength Stainless Steel: Manufactured from AISI 304 or 316, providing excellent durability and resistance to moisture and chemical fumes in industrial environments.

• Adjustable Tension: The screw-thread latch provides a wide adjustment range, ensuring a tight, vibration-resistant seal on various duct materials.

• Bridge Design (Optional): Available with an integrated bridge to step over spiral reinforcements on flexible ducting.

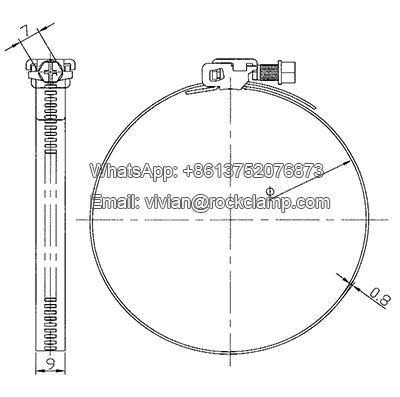

Drawing:

Dimension Chart:

Application:

Quick release duct clamp is widely used on ventilation systems, as well as:

 - Ductwork Connections: Secure flexible ventilation ducts in commercial buildings

 - Exhaust Systems: Quick maintenance access for kitchen hood exhausts

 - Air Handling Units: Vibration-resistant connections for blower systems

 - Cleanroom Ventilation: Sanitary clamping for pharmaceutical/lab airflow systems

FAQ

Q1: What are the main benefits of a Quick Release clamp over a standard clamp?

A: The primary advantage is accessibility. You can open the clamp completely to wrap it around a pipe that is already connected. Additionally, the quick-locking mechanism makes it significantly faster for maintenance crews who need to clean ductwork regularly.

Q2: Can these clamps be used for high-pressure fluid lines?

A: No. Quick release duct clamps are specifically designed for low-pressure air, dust, and ventilation systems. For high-pressure hydraulics or water lines, we recommend our T-Bolt or Heavy-Duty Worm Drive series.

Q3: Are these clamps compatible with spiral flexible hoses?

A: Yes. We can provide these with a Bridge Design that allows the band to "jump" over the spiral wire of the hose, ensuring an airtight seal without crushing the reinforcement.
