Band width: 7mm/9mm/10mm
Band thick: 0.6mm/0.8mm/1.0mm
Material: W4
Description:

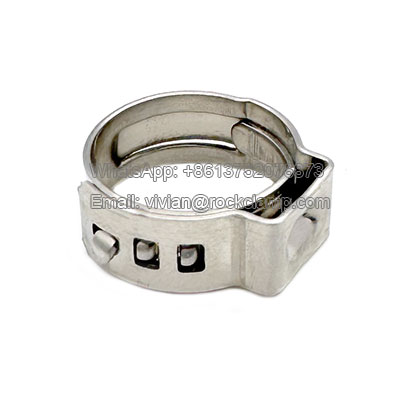

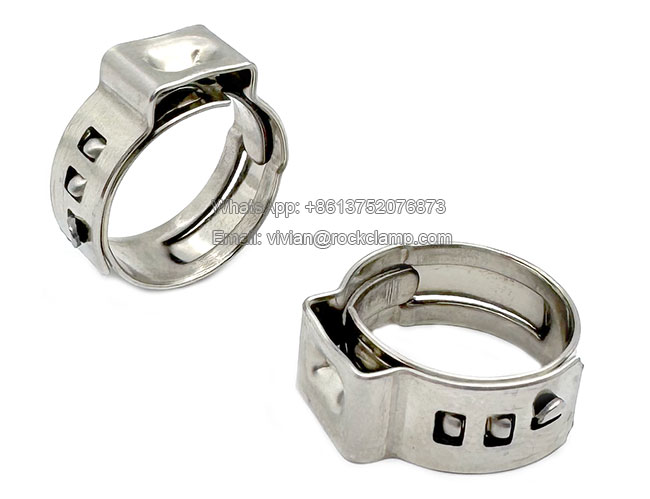

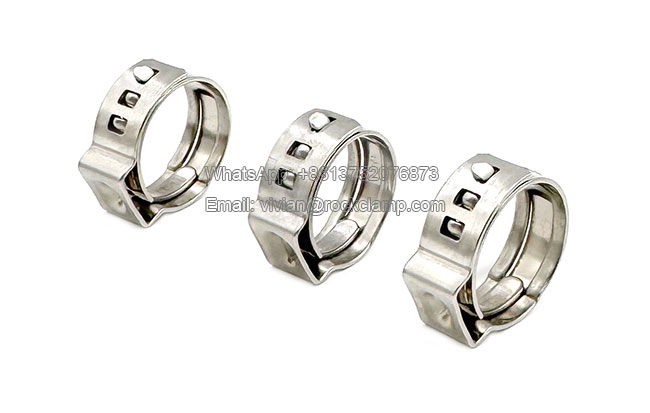

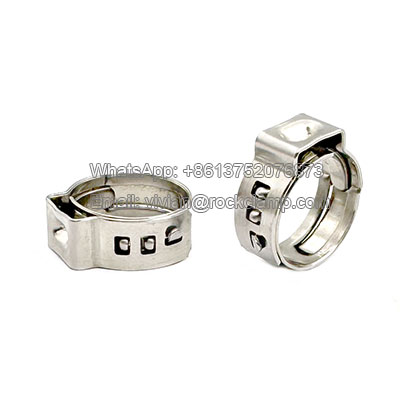

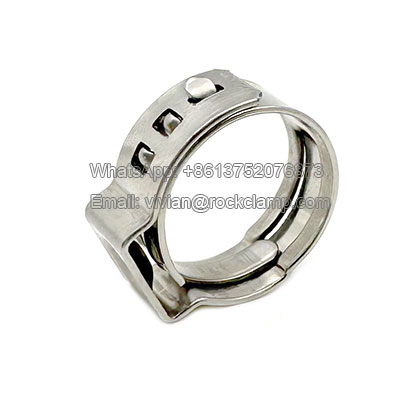

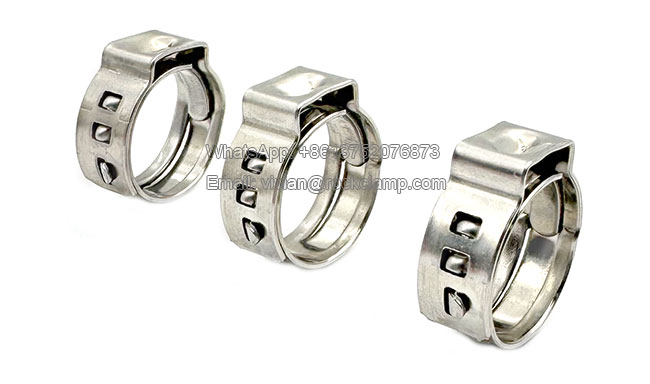

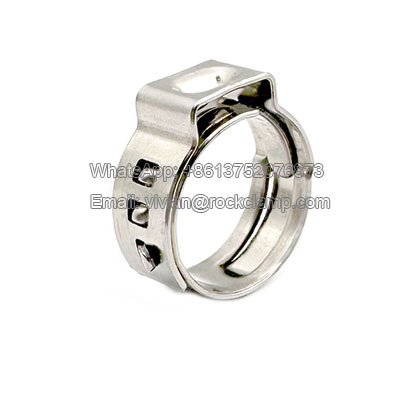

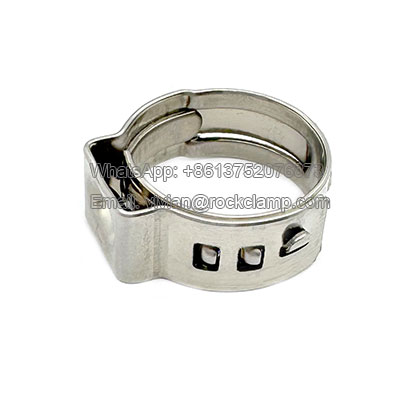

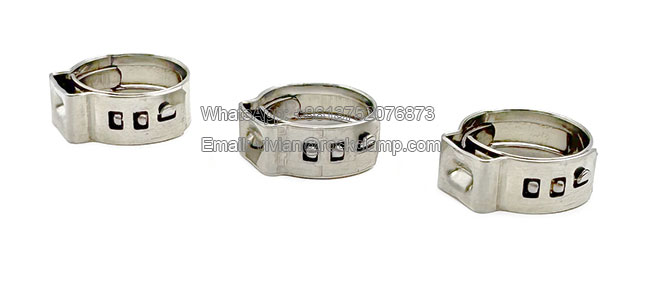

Manufactured from high-grade 304 stainless steel, the pex hose clamps offer exceptional strength and corrosion resistance, delivering a durable and maintenance-free connection solution for PEX piping systems in residential, commercial, and industrial plumbing applications.
Engineered for effortless installation, they can be securely fastened with basic hand tools or a dedicated crimping tool, making them accessible to both professionals and DIY users alike. Their precision-engineered interlocking mechanism guarantees a watertight seal while enhancing overall system performance and reliability.
Material:
W4 - All parts stainless steel 304
Dimension chart:
| Part No | PEX Tube Size |
Width *thick |
Item No | Dimension Range |
| PEA133 | 3/8" | 7*0.6 | 13.3-706R | 10.8 - 13.3 |
| PEA175 | 1/2" | 7*0.6 | 17.5-708R | 14.3 - 17.5 |
| PEA206 | 5/8" | 9*0.8 | 20.6-908R | 17.4 - 20.6 |
| PEA233 | 3/4" | 9*0.8 | 23.3-908R | 20.1 - 23.3 |
| PEA296 | 1" | 10*1.0 | 29.6-1010R | 26.4 - 29.6 |
How to use:
- Prepare the Connection
Slide the PEX clamp onto the tubing
Insert the tubing fully onto the fitting until it seats properly
- Secure the Clamp
Position the cinch tool perpendicular to the clamp ear
Apply firm, even pressure to completely close the ear
- Verify the Installation
Conduct a pressure test on the completed connection
Inspect for leaks and repeat the process if necessary
Confirm the system is completely leak-free before putting into service
Feature:
- Premium Quality Construction
The pex hose clamps provide exceptional durability with corrosion-resistant, rust-proof, waterproof, and oil-proof properties. Their superior oxidation resistance ensures long-term reliability, maintaining structural integrity without rusting or breaking under normal operating conditions.
- 360° Uniform Sealing Technology
Featuring a seamless 360° design, The pex hose clamps provide complete circumferential contact with no protrusions or gaps. The precision-edged manufacturing process creates smooth contact surfaces that distribute compression evenly across the pipe diameter, preventing leaks while protecting pipe integrity. The advanced edge-finishing technology eliminates sharp contact points that could damage piping systems.
- Self-Compensating Clamping Mechanism
The innovative cochlear design automatically adjusts clamping force in response to thermal expansion/contraction or mechanical vibration. This dynamic tensioning capability maintains constant optimal pressure on connections, ensuring persistent sealing effectiveness throughout system operation cycles.
Application:
Engineered for universal compatibility, they provide secure fastening for PEX tubing when installed with standard crimping tools. These high-performance clamps are extensively utilized across multiple industries, including:
- HVAC systems (water heaters, chilled water lines)
- Fluid distribution networks (potable water supply, hydronic heating)
- Specialized applications (marine plumbing, automotive fluid systems, industrial process piping)
Their exceptional reliability and user-friendly installation make them the preferred choice for professionals in both residential construction and large-scale commercial projects, ensuring leak-proof performance across diverse operating conditions and environmental challenges.
Package: small bag/box + outer carton + pallet
