Description:

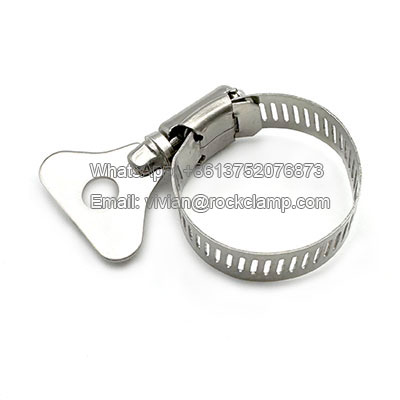

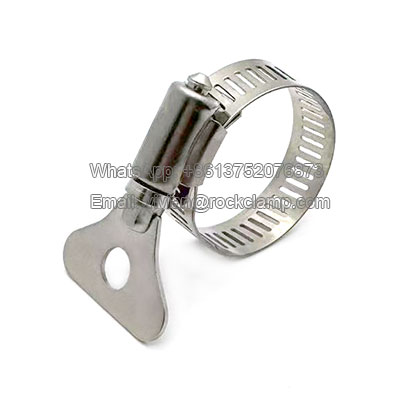

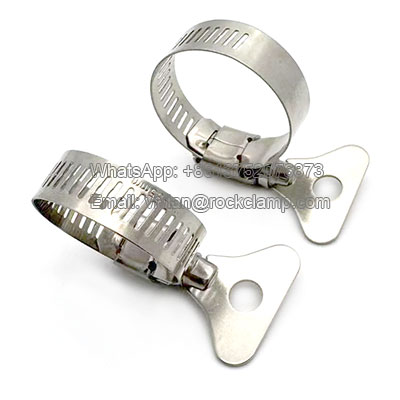

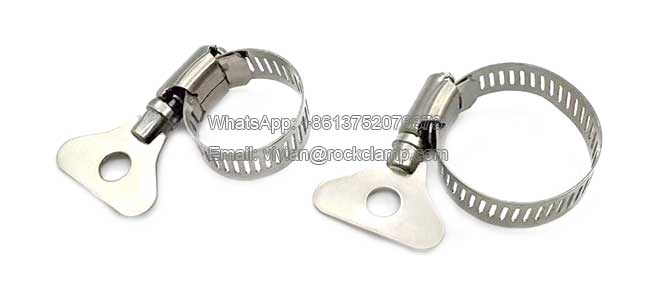

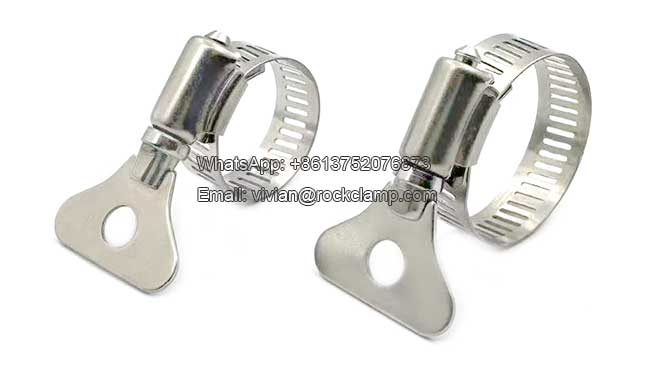

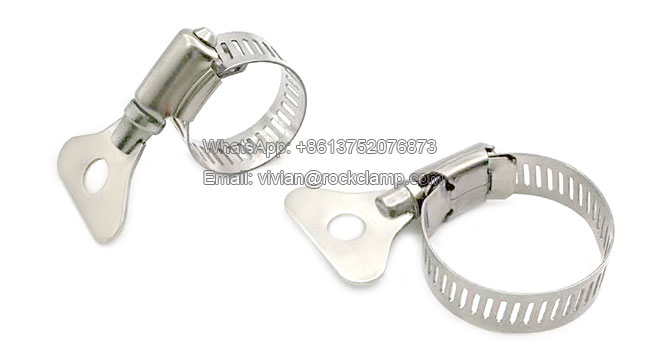

Steel handle Americany type clamp is also know as keyed hose clamp. It is a metal fastener used to secure hoses to pipe connections. Its key feature is an ergonomic handle mechanism that allows quick adjustment of tightness, making it ideal for applications requiring frequent disassembly or readjustment.
Basic Structure:

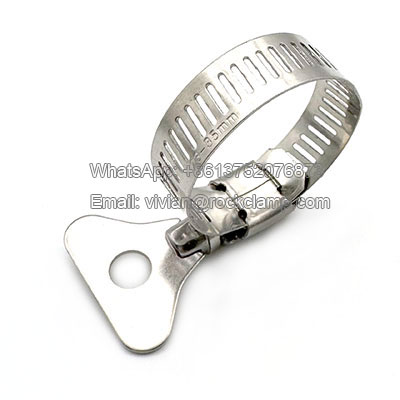

- Band. Typically made of stainless steell, featuring evenly spaced grooves or perforations to enhance gripping force.
- Screw Mechanism. Incorporates a worm gear or rack-and-pinion system, enabling tightening or loosening via handle rotation.

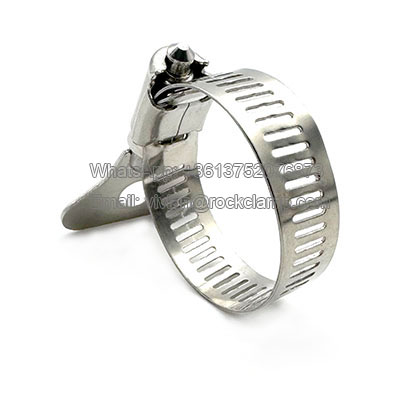

- Handle. Designed in foldable or fixed styles, constructed from metal to provide leveraged operation with minimal effort.
Operational Principle:
Tensioning Phase (Clockwise Rotation): ① Handle actuation → ② Worm drive engagement → ③ Band serration interlock → ④ Concentric diameter reduction
Detensioning Phase (Counterclockwise Rotation): ① Torque reversal → ② Worm disengagement → ③ Spring-mediated expansion → ④ Radial clearance restoration
Material:
W4 - All parts stainless steel 201 304 with steel handle
Dimension chart:
| keyed hose clamp | ||||||||
| Part No | SAE Size |
Dimension | Part No | SAE Size |
Dimension | |||
| mm | in inch | mm | in inch | |||||
| AM12W420 | 6 | 11-20 | 0.44"-0.78" | AM12W483 | 44 | 59-83 | 2.31"-3.25" | |
| AM12W423 | 8 | 13-23 | 0.5"-0.91" | AM12W489 | 48 | 65-89 | 2.56"-3.5" | |
| AM12W427 | 10 | 14-27 | 0.56"-1.06" | AM12W495 | 52 | 72-95 | 2.81"-3.75" | |
| AM12W432 | 12 | 18-32 | 0.69"-1.25" | AM12W4102 | 56 | 78-102 | 3.06"-4" | |
| AM12W438 | 16 | 21-38 | 0.81"-1.5" | AM12W4108 | 60 | 84-108 | 3.31"-4.25" | |
| AM12W444 | 20 | 21-44 | 0.81"-1.75" | AM12W4114 | 64 | 91-114 | 3.56"-4.5" | |
| AM12W451 | 24 | 27-51 | 1.06"-2" | AM12W4127 | 72 | 103-127 | 4.06"-5" | |
| AM12W457 | 28 | 33-57 | 1.31"-2.25" | AM12W4140 | 80 | 117-140 | 4.62"-5.5" | |
| AM12W464 | 32 | 40-64 | 1.56"-2.5" | AM12W4152 | 88 | 130-152 | 5.12"-6" | |
| AM12W470 | 36 | 46-70 | 1.81"-2.75" | AM12W4165 | 96 | 141-165 | 5.56"-6.5" | |
| AM12W476 | 40 | 50-76 | 2"-3" | AM12W4178 | 104 | 157-178 | 6.18"-7" | |

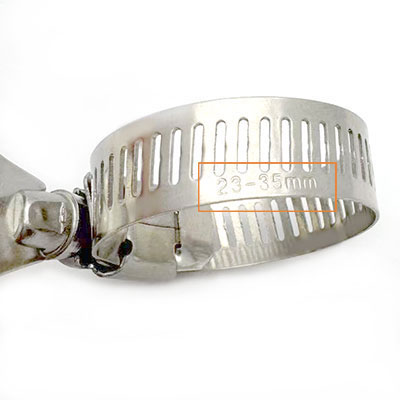

Size marks stamped on band clearly.
Application:
- Automotive & Heavy Machinery:

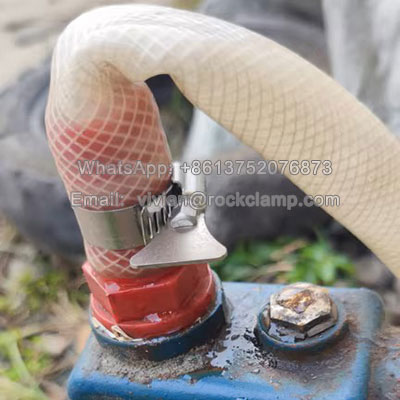

Cooling Systems: Quick-secure connections for radiator hoses in tight engine compartments
Hydraulic Lines: Vibration-resistant clamping for high-pressure fluid transfer systems
- Irrigation Systems:
Powder-coated handles resist fertilizer chemicals
Wide-diameter models for layflat hoses

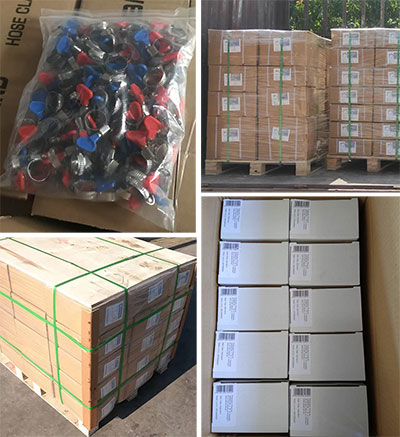

Package: small bag/box + outer carton + pallet
