Description:

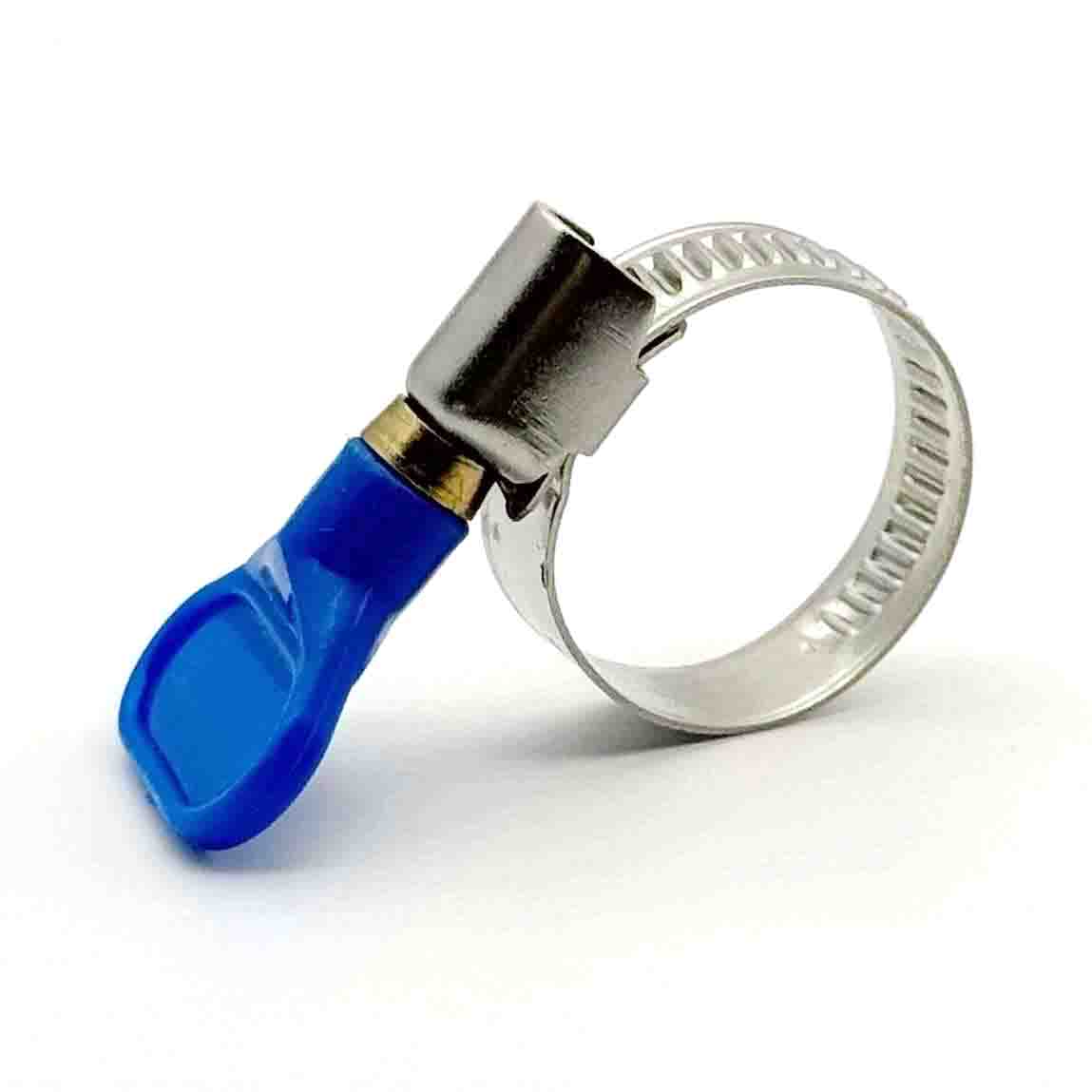

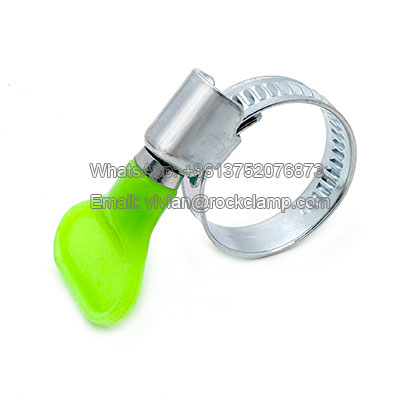

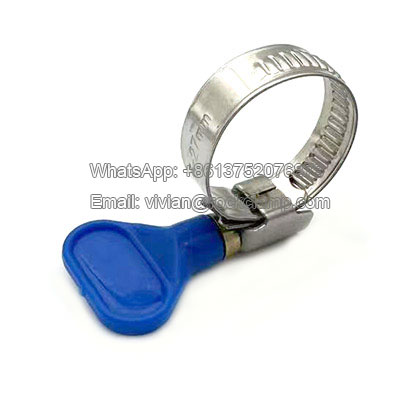

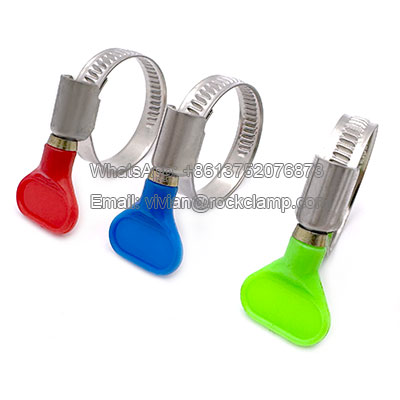

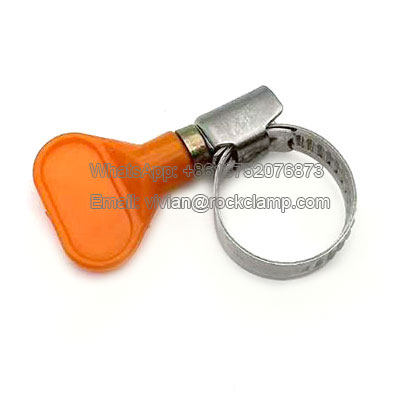

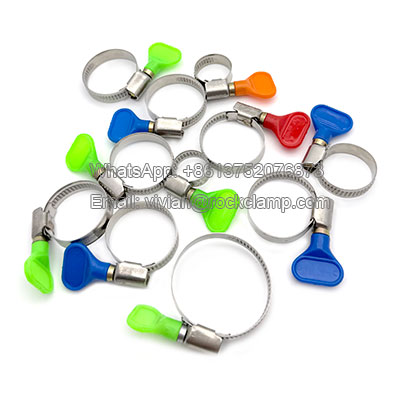

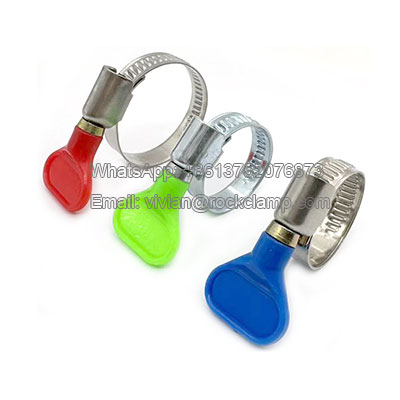

Plastic handle Germany type clamp is also know as hose clamp with thumb screw. It is a metal clamping device designed for fastening hoses to pipes, featuring a handle for quick and tool-free tightening/loosening, suitable for scenarios requiring regular maintenance or repositioning.
Structural Composition:
- Clamping Band: Fabricated from corrosion-resistant stainless steel or zinc-plated steel, incorporating precision-stamped non-perforations to optimize grip performance.
- Drive Assembly: Integrates either a worm-drive or linear gear mechanism, converting rotational handle motion into precise circumferential tension control.
- Operating Lever: Available in collapsible or rigid configurations utilizing metallic or high-strength polymer materials to deliver mechanical advantage with minimal input force.
Operating Principle:
- Tightening. Rotate handle clockwise → Drives worm gear rotation → Engages band grooves → Uniformly reduces diameter
- Loosening. Rotate handle counterclockwise → Releases worm gear pressure → Spring assist expands band
Material:
Multiple material options available.
W1 - All parts carbon steel with zinc plated, handle plastic
W2 - Hosing and band stainless steel 201/301/304, screw carbon steel with plastic handle
Operating Principle:
- Tightening. Rotate handle clockwise → Drives worm gear rotation → Engages band grooves → Uniformly reduces diameter
- Loosening. Rotate handle counterclockwise → Releases worm gear pressure → Spring assist expands band
Dimension chart:
| hose clamp with thumb screw | ||||
| Part No | Dimension range |
Part No | Dimension range |
|
| HGM9W112 | 8-12 | HGM9/12W145 | 30-45 | |
| HGM9W116 | 10-16 | HGM9/12W150 | 32-50 | |
| HGM9W120 | 12-20 | HGM9/12W160 | 40-60 | |
| HGM9W122 | 12-22 | HGM9/12W170 | 50-70 | |
| HGM9/12W125 | 16-25 | HGM9/12W180 | 60-80 | |
| HGM9/12W127 | 16-27 | HGM9/12W190 | 70-90 | |
| HGM9/12W132 | 20-32 | HGM9/12W1100 | 80-100 | |
| HGM9/12W135 | 23-35 | ... | ... | |
| HGM9/12W140 | 25-40 | HGM9/12W1200 | 180-200 | |
Application:
The hose clamp with thumb screw is widely used in multiple industrial sectors, demonstrating exceptional adaptability across:
- Automotive Repair: Enables tool-free installation of radiator hoses in confined engine compartments, reducing service time by 40% compared to conventional clamps.
- Industrial Piping: Ideal for chemical reactor hose connections requiring frequent replacement, cutting maintenance downtime by 60% in typical petrochemical applications.
- Agricultural Irrigation: Facilitates seasonal drip system assembly/disassembly with glove-compatible handle design, withstands UV exposure and agricultural chemicals.
Package: small bag/box + outer carton + pallet
