Stainless steel fuel injection hose clamps

Description:

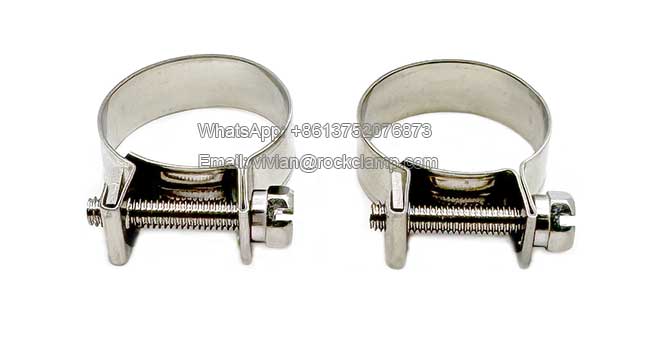

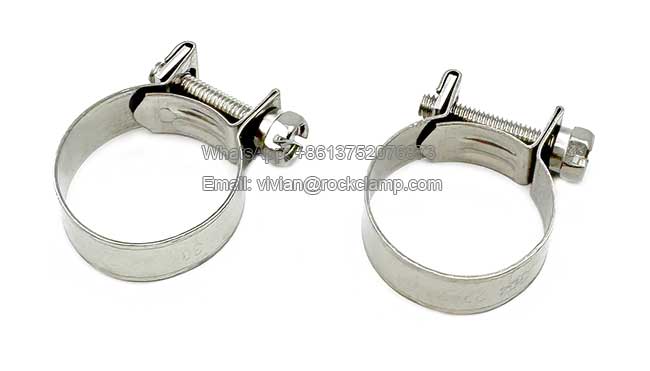

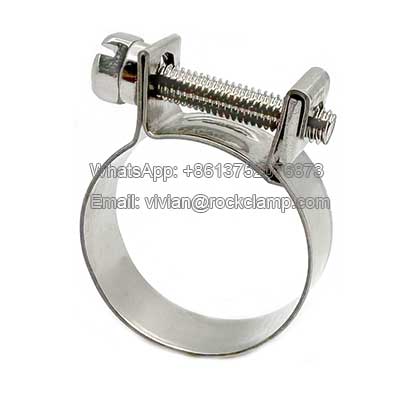

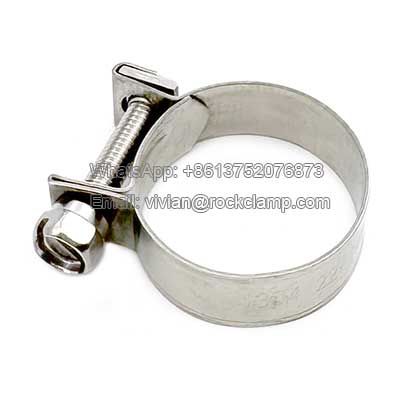

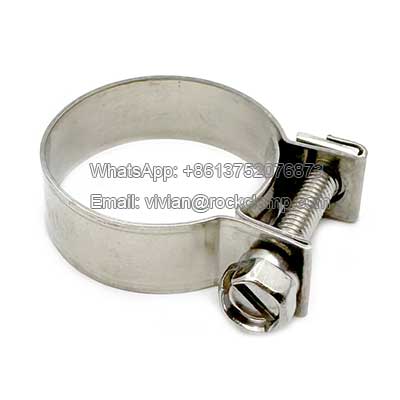

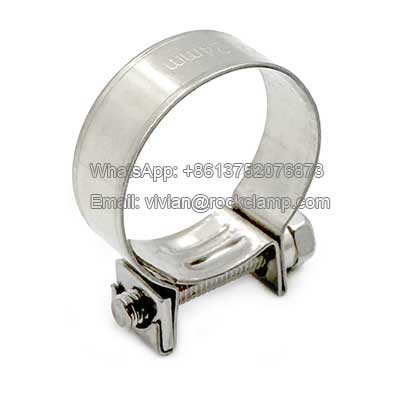

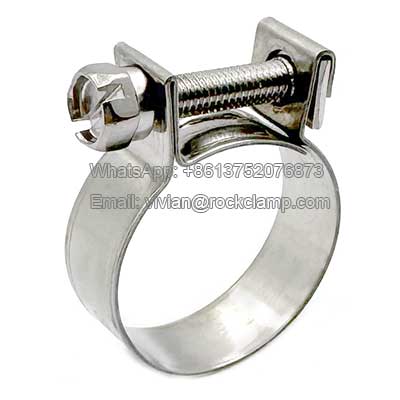

Stainless steel fuel injection hose clamps offer an ideal balance between the simplicity and compact design of worm-drive clamps and the superior strength and even pressure distribution of T-bolt clamps. These fuel injection clamps are specifically designed for fuel lines and small-diameter hoses, ensuring a secure and leak-free connection in demanding applications.

Constructed entirely from high-quality stainless steel, these fuel injection clamps provide exceptional corrosion resistance, far surpassing standard zinc-plated alternatives. Their specialized design ensures uniform pressure distribution around the hose, effectively preventing leaks. Unlike traditional clamps, the screw mechanism is shielded from direct contact with the hose, eliminating the risk of hose damage during tightening or vibration.

Material:

W4 - SS304

Constructed from high-quality 304 stainless steel (including screws and nuts), these stainless steel fuel injection hose clamps provide exceptional rust and oxidation resistance, making them highly durable for outdoor applications. Their corrosion-resistant properties ensure reliable, long-term performance even in harsh environments.

Fuel injection clamps Features:

Smooth, Burr-Free Interior – Prevents hose damage and cutting, ensuring a secure yet gentle grip.

Optimized for Fuel Lines & Small Hoses – Ideal for high-pressure fuel injection systems and precision fluid applications.

Reinforced Stainless Steel Band – Resists breakage even under high torque, providing reliable clamping force.

360° Uniform Sealing Pressure – Eliminates leaks by distributing pressure evenly, preventing deformation or stripping.

Tool-Simple Adjustment – Easily tightened or loosened with a standard screwdriver for quick installation.

Technical Specifications

• Materials: * W1 (Carbon steel with zinc plating - Salt spray test 72h+)

  • W4 (100% Stainless steel 304 - High corrosion resistance)

• Band Width: 9mm standard for optimal pressure distribution.

• Size Range: Precision sizes from 7-9mm up to 16-18mm.

Application:

Thanks to their robust construction and even clamping force, these stainless steel fuel injection hose clamps are well-suited for high-pressure environments, such as modern fuel injection systems. Whether for automotive, marine, or industrial use, stainless steel fuel injection hose clamps deliver reliability and long-lasting performance. It includes:

- Industries: Automotive, heavy-duty diesel trucks, aerospace, marine, and industrial applications.

- Fluid Systems: Compatible with fuel hoses, air hoses, water pipes, silicone hoses, and high-pressure fluid lines.

- Common Uses: Diesel/petrol fuel lines, auto repair, marine plumbing, agricultural equipment, and general industrial hose connections.

FAQ: Fuel Injection Hose Clamps

• Q: Why can't I use a standard worm gear clamp for fuel injection lines?

  • A: Standard worm gear clamps have slots that can pinch or cut into the hose under high pressure. Fuel injection clamps have a solid band and a nut/bolt design that provides a more secure, uniform seal without damaging the delicate fuel line.

• Q: What size clamp do I need for a 5/16" fuel hose?

  • A: Typically, a 13-15mm or 14-16mm clamp is used for 5/16" ID hoses, but it depends on the outer diameter (OD) of your specific hose. We recommend measuring the OD of the hose while it is pushed over the fitting.

• Q: Are these clamps reusable?

  • A: Yes, the high-quality nut and bolt mechanism allows for multiple installations and removals while maintaining its clamping integrity.

• Q: Can these be used for diesel and gasoline systems?

  • A: Absolutely. Our clamps are compatible with all types of fuel, including gasoline, diesel, and biofuels, as long as the material grade (W1 or W4) is chosen based on the environmental exposure.
