Wire diameter: 1.5mm - 2.5mm
Screw size: M5*30 - M8*80
Material: W1
Description:

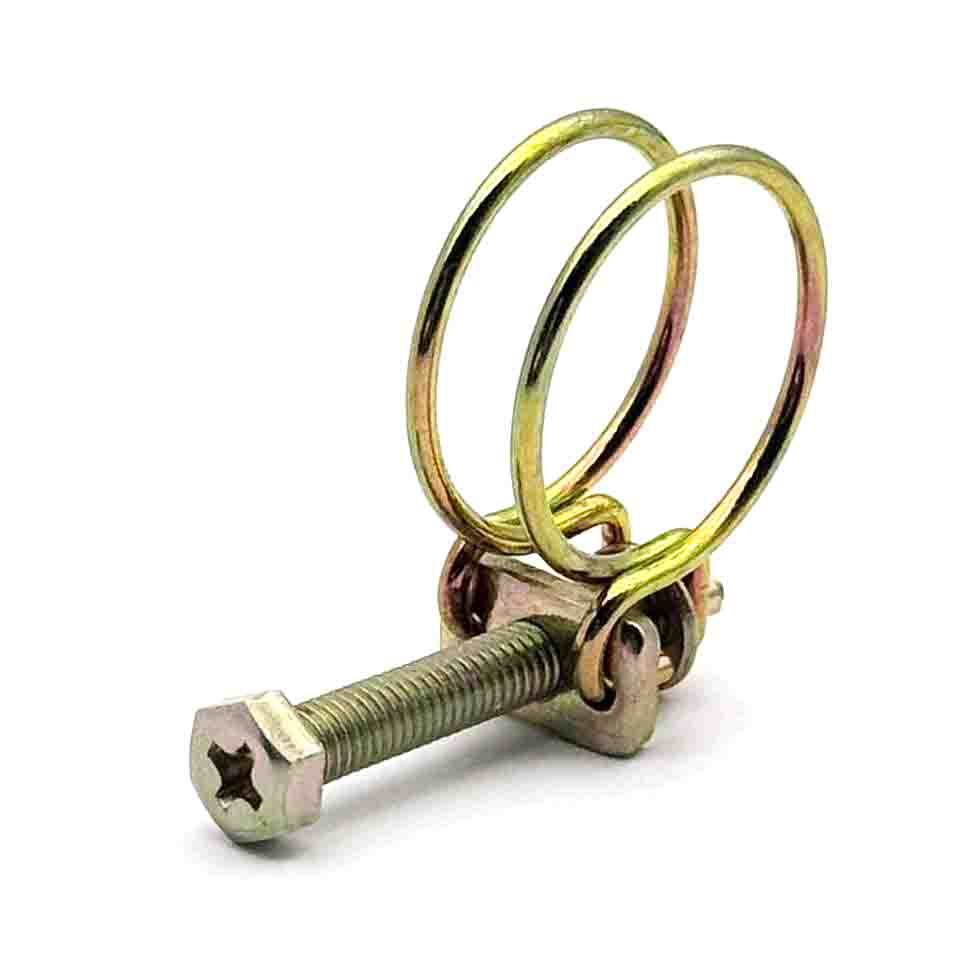

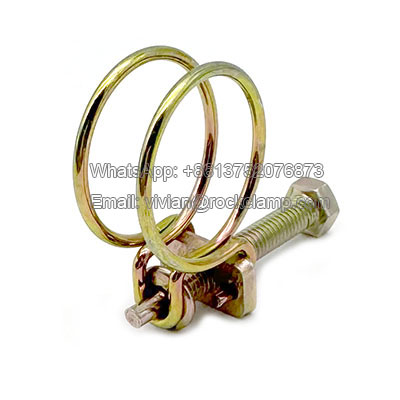

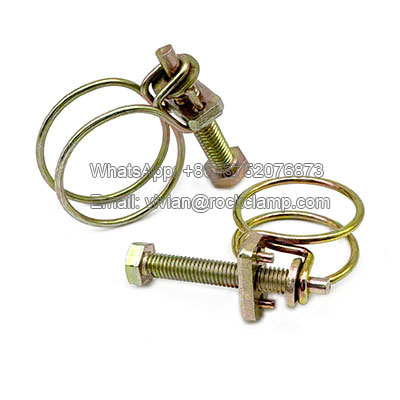

Double wire hose clamp is a professional fastener with double-layer high-strength steel wire spiral winding structure, designed for high-pressure sealing and fixing of various hoses, pipes and cables. Compared with traditional hose clamps, its unique double wire structure provides more uniform radial pressure and stronger explosion resistance.
Material:
W1 - Wire 65Mn steel with zinc coating, screw/washer/plate carbon steel with zinc plated
Features:
The double wire hose clamp is a high-performance fastener featuring a dual-layer spiral-wound high-strength steel wire construction, engineered specifically for secure high-pressure sealing and reliable fixation of hoses, pipes, and cables. Its innovative double-wire design delivers superior performance compared to conventional clamps by ensuring perfectly uniform radial pressure distribution while offering exceptional explosion resistance - making it ideal for demanding industrial applications where safety and durability are paramount. The clamp's robust structure maintains consistent tension even under extreme pressure fluctuations and vibration, providing leak-proof connections that outperform traditional single-wire designs in both reliability and service life.
Dimension Chart:
| Double wire hose clamp | |||
| Part No | Dimension Range | wire dia | screw |
| DWW114 | 11-14 | 1.5 | M5×30 |
| DWW116 | 13-16 | 1.5 | M5×30 |
| DWW118 | 15-18 | 1.5 | M5×30 |
| DWW120 | 17-20 | 1.8 | M5×30 |
| DWW122 | 19-22 | 1.8 | M5×30 |
| DWW124 | 20-24 | 1.8 | M5×30 |
| DWW126 | 22-26 | 1.8 | M5×30 |
| DWW128 | 24-28 | 1.8 | M5×30 |
| DWW130 | 26-30 | 2.2 | M6×40 |
| DWW132 | 28-32 | 2.2 | M6×40 |
| DWW135 | 31-35 | 2.2 | M6×40 |
| DWW138 | 34-38 | 2.2 | M6×40 |
| DWW140 | 35-40 | 2.2 | M6×40 |
| DWW142 | 37-42 | 2.2 | M6×40 |
| DWW145 | 40-45 | 2.2 | M6×40 |
| DWW148 | 43-48 | 2.2 | M6×50 |
| DWW150 | 45-50 | 2.2 | M6×50 |
| ... | |||
| DWW1120 | 113-120 | 2.5 | M8×80 |
Application:

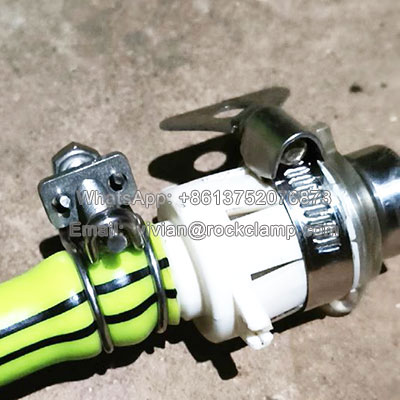

Double Wire Hose Clamp is a high-strength fastener specifically designed for corrugated tubes, featuring a dual-layer spiral-wound high-tensile steel wire structure that delivers uniform radial pressure and ensures reliable sealing performance. Its unique double-wire design not only enhances explosion resistance but also effectively withstands demanding conditions like high pressure and vibration, making it the ideal choice for corrugated tube connections.
- Gas corrugated tubes: Ensures high-pressure sealing of gas pipelines to prevent leakage
- Hydraulic corrugated tubes: Used for high-pressure line fixing in construction machinery and hydraulic systems
- HVAC refrigerant lines: Corrosion-resistant and vibration-proof, suitable for refrigerant transportation
Package:
Small bag/box + outer carton + pallet
