Band width: 20mm/25mm
Band thick: 1.2/1.5/2.0mm
Screw: M6*20
Nut: M8+M10
Material: W1
Description:

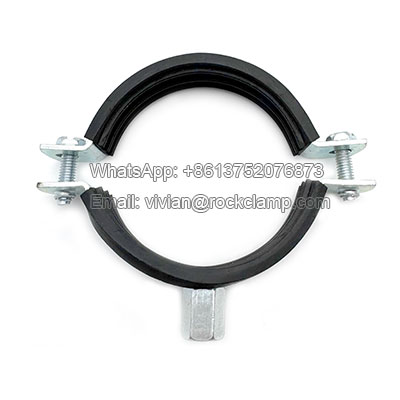

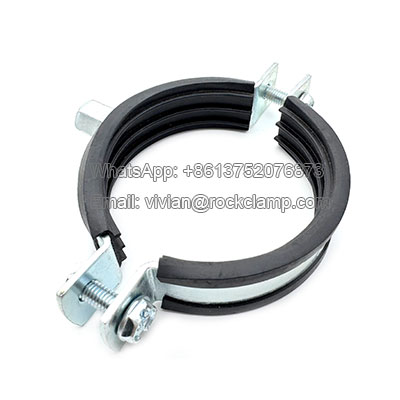

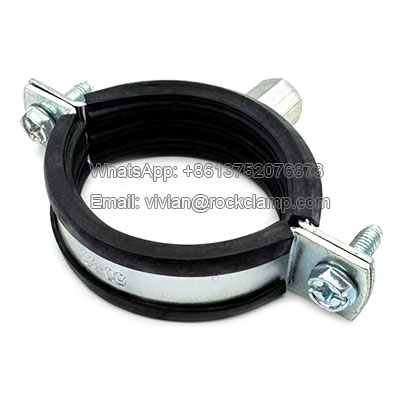

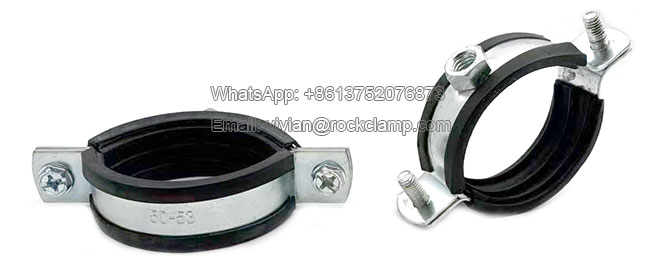

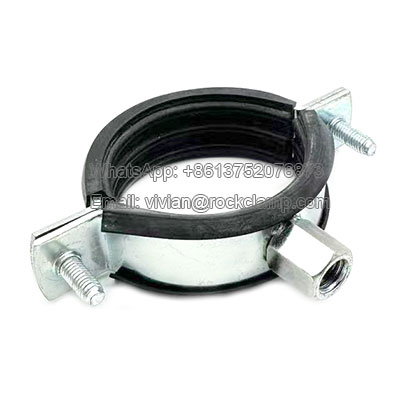

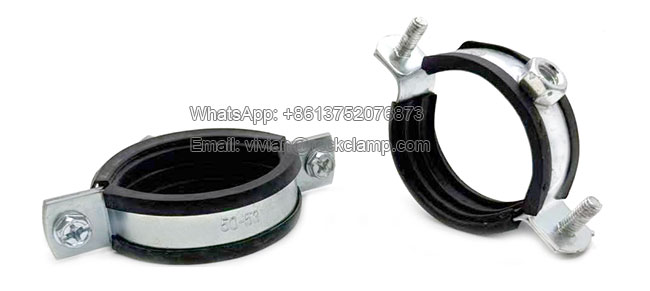

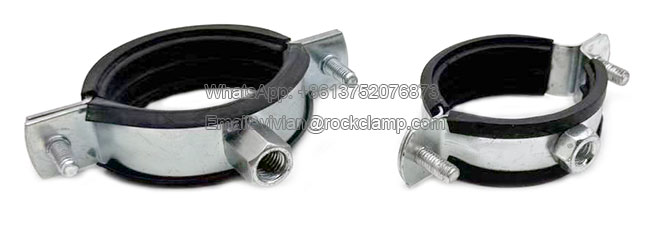

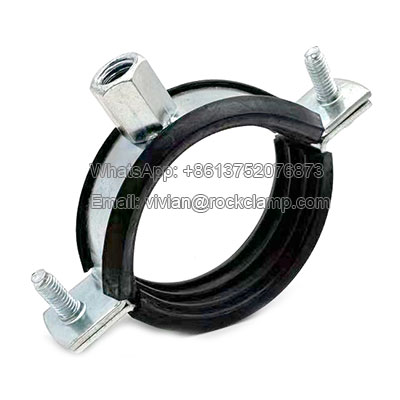

The clamp with rubber lining are essential hardware components designed to securely fasten and support piping systems, featuring a durable metal band with adjustable tensioning mechanisms for precise fitment. These clamps incorporate EPDM linings to provide vibration dampening, noise reduction, and protection against pipe abrasion, while their corrosion-resistant construction ensures long-term reliability in harsh environments. Available in various sizes and configurations, pipe clamps offer versatile solutions for HVAC, plumbing, industrial, and marine applications, combining robust structural support with the ability to accommodate thermal expansion and mechanical stresses in pressurized systems.
Material:
W1 - Carbon steel with zinc plate
Component:
Zinc-Plated Steel Band – Provides structural strength and rust resistance.
EPDM Rubber Lining – Absorbs vibrations, reduces noise, and prevents pipe/hose damage.
Dual-Screw Fastening (M8/M10 compatible) – Allows adjustable, high-tension clamping.
Features:
The clamp with rubber lining is a heavy-duty fastening device designed to securely mount, support, and dampen vibrations in pipelines, cables, and mechanical systems. It consists of a galvanized steel band lined with EPDM rubber for noise reduction, corrosion resistance, and protection against abrasion.
They combine structural strength with protective cushioning, making them ideal for applications requiring secure fastening with vibration dampening and damage prevention.
Dimension Chart:
| Clamp with rubber lining | ||
| Size inch |
Dimension Range |
Band width *thick |
| 1/4" | 12-14 | 20*1.2 |
| 3/8" | 15-19 | 20*1.2 |
| 1/2" | 20-23 | 20*1.2 |
| 3/4" | 26-28 | 20*1.2 |
| 1" | 32-35 | 20*1.2 |
| 1 1/4" | 40-43 | 20*1.2 |
| 1 1/2" | 44-49 | 20*1.2 |
| 2" | 57-61 | 20*1.5 |
| 2 1/2" | 74-80 | 20*1.5 |
| 3" | 83-91 | 20*1.5 |
| 4" | 108-114 | 25*2.0 |
| 5" | 140-144 | 25*2.0 |
| 6" | 165-169 | 25*2.0 |
Application:
The clamp with rubber lining is widely used across industries for secure pipe installation and support, with key applications including:
HVAC & Plumbing – Mounting refrigerant lines, water pipes, and ductwork while allowing for thermal expansion
Industrial Piping – Supporting high-pressure hydraulic/pneumatic lines in factories and power plants
Oil & Gas – Vibration-dampened clamping for drilling rig pipes and LNG transfer systems
Fire Protection – Earthquake-resistant sprinkler system pipe supports in buildings
Package:
Small bag/box + outer carton + pallet
