Band width: 6.3mm/7mm/8mm
Band thick: 0.5mm/0.6mm/0.8mm
Material: W4 - SS304
Description:

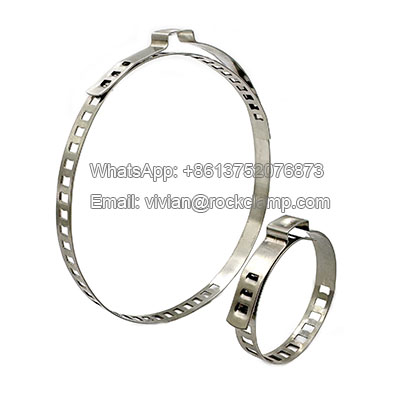

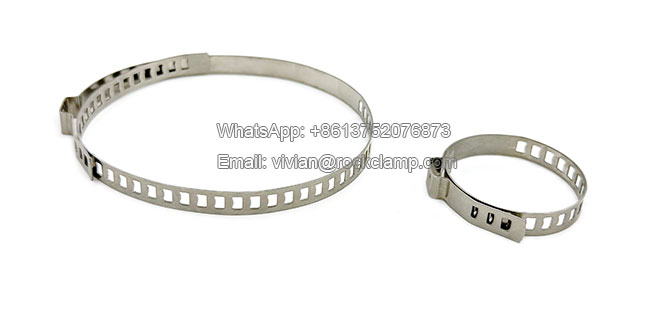

The one ear adjustable clamps are also known as adjustable circular clamps, they feature a multi-position interlock mechanism, enabling quick and secure fastening across a wide diameter range for various hose sizes. Its design ensures fast and effortless installation. The external interlock system, combined with a smooth band and burr-free edges, provides superior protection against hose damage during installation.
Material:
W4 - All parts stainless steel 304
Adjustable circular clamps Features:
Single-Ear Design – Allows for quick and tool-free adjustment with a secure, one-handed operation.
Multi-Position Interlock Mechanism – Provides flexible adjustment across a wide diameter range to fit various hose sizes.
Tamper-Proof Construction – One-piece design ensures a reliable, leak-proof seal while preventing hose damage.
Smooth, Burr-Free Band – Protects hoses from scratches or abrasion during installation and use.
Corrosion-Resistant Stainless Steel – Offers superior durability, strength, and long-term performance in harsh environments.
Fast & Easy Installation – Simplified design reduces assembly time while maintaining a secure hold.
External Interlock System – Reinforces clamping pressure without compromising hose integrity.
Dimension chart:
| Part No. | Dimension Range | Band width Band thick |
| AEA1 | 25.0 - 48.0 | 7 X 0.6 |
| AEA2 | 60.0 - 120.0 | 7 X 0.6 |
| AEB1 | 20.0 - 45.0 | 6.3 X 0.5 |
| AEB2 | 20.0 - 45.0 | 7 X 0.6 |
| AEB3 | 45.0 - 120.0 | 8 X 0.6 |
| AEC1 | 25.0 - 48.0 | 7 X 0.8 |
| AEC2 | 60.0 - 120.0 | 7 X 0.8 |
Adjustable circular clamps application:
Industrial Machinery – Secures rubber hoses in hydraulic systems, pumps, and pneumatic equipment where vibration resistance is critical.
Automotive Systems – Ideal for coolant hoses, fuel lines, and air intake systems, ensuring leak-proof connections in engines and fluid transfer systems.
HVAC & Plumbing – Fastens ducting, drainage, and refrigerant hoses in heating, ventilation, and air conditioning systems.
Marine & Agriculture – Resists corrosion while clamping water, fuel, or chemical hoses in harsh environments.
General Maintenance – Provides quick, tool-free adjustments for repair and replacement of hoses in manufacturing or facility operations.
Package: small bag/box + outer carton + pallet
