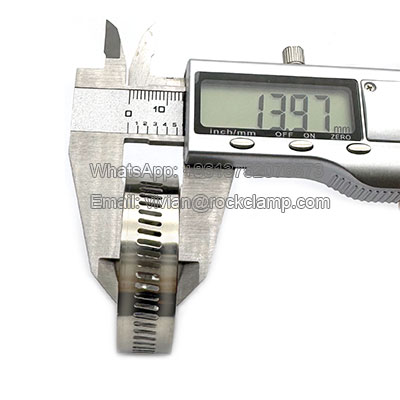

Band width: 9/16” (14.2mm)

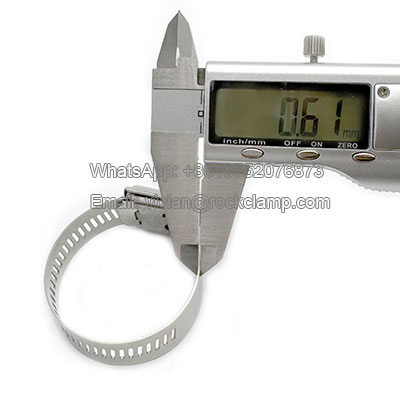

Band thick: 0.024” (0.6mm)
Material: W2, W4
Free running torque: 6 in-lbs (0.7 Nm)
Suggested installation torque: 35 in-lbs (4 Nm)
Description:

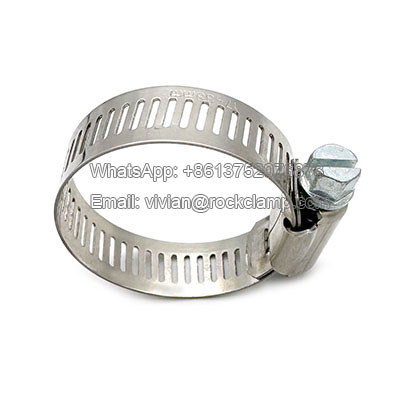

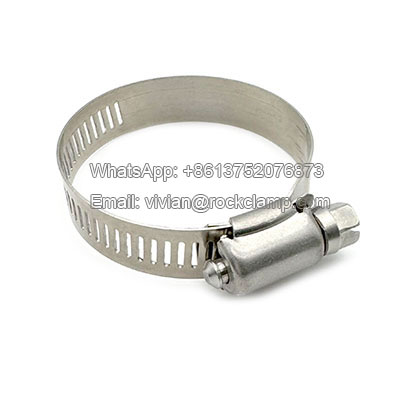

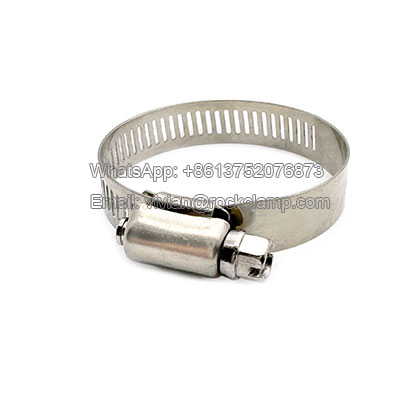

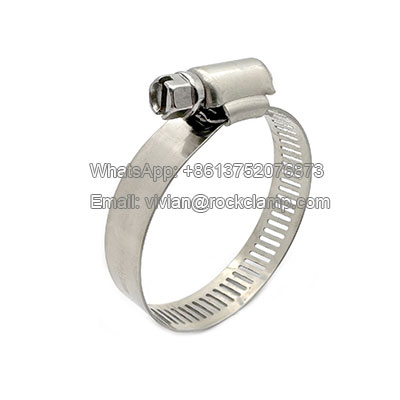

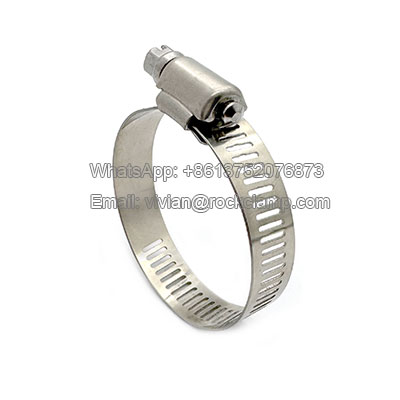

Band width 9 16 hose clamp is a kind of worm drive hose clamp, which is a common type of hose clamp used to secure a hose onto a fitting, such as a pipe or barb, by applying even pressure around the circumference of the hose. It consists of a stainless steel with a series of perforations and a screw mechanism (the "worm drive") that tightens the band when turned.
Material:
Multiple material options available.
W2 - Hosing and band stainless steel 201 or 301, screw carbon steel with zinc/nickel plated
W4 - All parts stainless steel 201 or 304. (screw, hosing and band)
Feature:
9 16 hose clamp features the band width 9/16 inch (14.2mm), which offers several advantages over the standard 1/2”(12.7mm) band width, primarily due to its increased band width and enhanced structural strength. The wider band provides greater clamping force distribution, reducing the risk of hose damage or deformation under high pressure, making it ideal for applications like turbocharged systems, heavy-duty fuel lines, or industrial hydraulic hoses. Its improved resistance to vibration and loosening ensures a more secure, long-lasting seal in high-stress environments such as automotive engine bays or machinery with constant movement.
Dimension chart:
| 9 16 hose clamp | ||||||||
| Part No | SAE Size |
Dimension | Part No | SAE Size |
Dimension | |||
| mm | in inch | mm | in inch | |||||
| AM14W32 | 12 | 18-32 | 0.69"-1.25" | AM14W89 | 48 | 65-89 | 2.56"-3.5" | |
| AM14W38 | 16 | 21-38 | 0.81"-1.5" | AM14W95 | 52 | 72-95 | 2.81"-3.75" | |
| AM14W44 | 20 | 21-44 | 0.81"-1.75" | AM14W102 | 56 | 78-102 | 3.06"-4" | |
| AM14W51 | 24 | 27-51 | 1.06"-2" | AM14W108 | 60 | 84-108 | 3.31"-4.25" | |
| AM14W57 | 28 | 33-57 | 1.31"-2.25" | AM14W114 | 64 | 91-114 | 3.56"-4.5" | |
| AM14W64 | 32 | 40-64 | 1.56"-2.5" | AM14W127 | 72 | 103-127 | 4.06"-5" | |
| AM14W70 | 36 | 46-70 | 1.81"-2.75" | AM14W140 | 80 | 117-140 | 4.62"-5.5" | |
| AM14W76 | 40 | 50-76 | 2"-3" | AM14W152 | 88 | 130-152 | 5.12"-6" | |
| AM14W83 | 44 | 59-83 | 2.31"-3.25" | AM14W165 | 96 | 141-165 | 5.56"-6.5" | |
Application:
They are designed for heavy-duty applications where standard 12.7mm clamps may lack sufficient grip, durability, or pressure resistance. Its wider band and reinforced construction make it ideal for:
High-Pressure Fluid Systems – Turbocharged engine coolant lines, fuel injection hoses, and hydraulic systems where tighter sealing is critical.
Industrial & Agricultural Machinery – Heavy equipment (tractors, excavators) with thick-walled hoses subject to vibration and extreme conditions.
Performance & Racing Vehicles – Ensures secure hose retention in high-vibration environments.
Reinforced Silicone/EPDM Hoses – Provides even pressure distribution on thick or multi-layer hoses without cutting into the material.
HVAC & Compressed Air Systems – Handles higher burst pressures in industrial air/refrigeration lines.

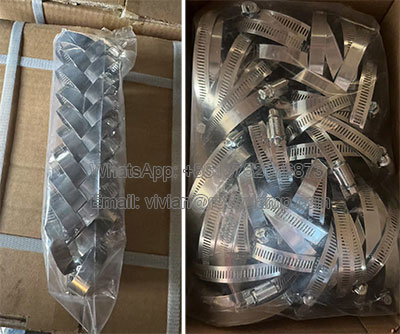

Package: Small bag/box + outer carton + pallet
